Grundfos CME 15-2-G A R G E AQQE Horizontal Multi-Stage Booster Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Grundfos CME 5-7-I A R I E AQQE 304 Stainless Steel Horizontal Multi-Stage Booster Pump 415V 3ph 50Hz.
These pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps. The pumps are of the close-coupled type. CM pumps are fitted with mains-operated motors whereas the motor for CME pumps has an integrated frequency converter. Both CM and CME pumps have mechanical shaft seals.
PLEASE NOTE - the following 415V CME pumps are NOT fitted with the new MGE motor:
CME 5-7-I, CME 5-8-I, CME 10-3-I, CME 10-4-I, CME 10-5-I, CME 15-2-I, CME 15-3-I, CME 25-1-I and CME 25-2-I
CME 5-7-G, CME 5-8-G, CME 10-3-G, CME 10-4-G, CME 10-5-G, CME 15-2-G, CME 15-3-G, CME 25-1-G and CME 25-2-G
Pipe Connections
CM 1 & CM 3 - 1" BSPF Suction/Discharge
CM 5 - 1 1/4" BSPF Suction / 1" BSPF Discharge
CM 10 - 1 1/2" BSPF Suction/Discharge
CM 15 & CM 25 - 2" BSPF Suction/Discharge
SKU | 99176124 |
---|---|
Manufacturer | Grundfos |
Manufacturers Warranty | 2 Years |
GTIN | 5700317306875 |
Weight | 61.1 Kg |

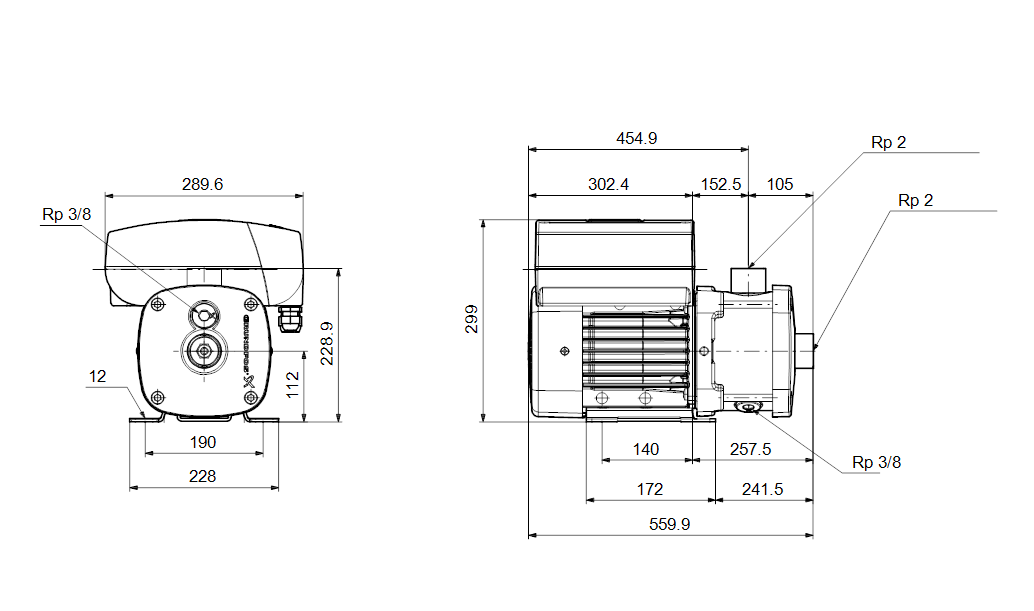

Dimensions | 300mm (h) x 290mm (w) x 559mm (d) |
Motor Size (kW/W) | 4.0 kW |
Full Load Current (FLC) | 8.10-6.60 A |
Voltage | 415V 3Ph 50Hz |
Max Flow | 26.5m3/hr |
Max Head | 50.5m |
Material | Stainless Steel |
