Grundfos CME 10-4-I A R I E AQQE Horizontal Multi-Stage Booster Pump 415V

MRRP £4,721.00 + VAT Our price £3,305.00 (+ VAT) Incl. VAT: £3,966.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos CME 10-4-I A R I E AQQE 304 Stainless Steel Horizontal Multi-Stage Booster Pump 415V 3ph 50Hz.

These pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps. The pumps are of the close-coupled type. CM pumps are fitted with mains-operated motors whereas the motor for CME pumps has an integrated frequency converter. Both CM and CME pumps have mechanical shaft seals.

PLEASE NOTE - the following 415V CME pumps are NOT fitted with the new MGE motor:

CME 5-7-I, CME 5-8-I, CME 10-3-I, CME 10-4-I, CME 10-5-I, CME 15-2-I, CME 15-3-I, CME 25-1-I and CME 25-2-I

CME 5-7-G, CME 5-8-G, CME 10-3-G, CME 10-4-G, CME 10-5-G, CME 15-2-G, CME 15-3-G, CME 25-1-G and CME 25-2-G

Pipe Connections

CM 1 & CM 3 - 1" BSPF Suction/Discharge

CM 5 - 1 1/4" BSPF Suction / 1" BSPF Discharge

CM 10 - 1 1/2" BSPF Suction/Discharge

CM 15 & CM 25 - 2" BSPF Suction/Discharge

More Information
SKU 99077760
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5710620409637
Weight 62.3 Kg

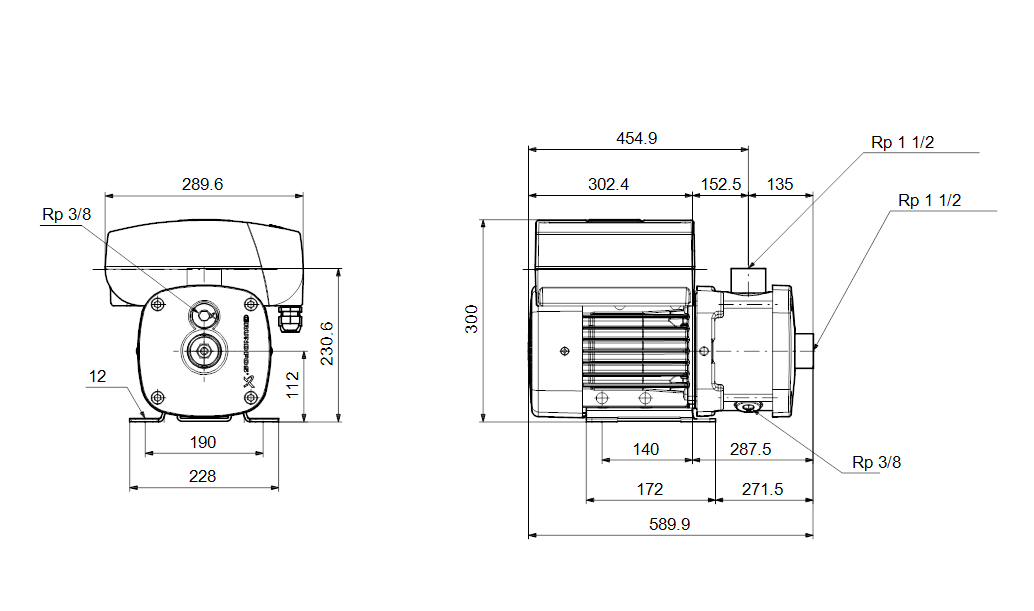

Dimensions 300mm (h) x 290mm (w) x 589mm (d)
Motor Size (kW/W) 5.5 kW
Full Load Current (FLC) 11.0/8.80A
Voltage 415V 3Ph 50Hz
Max Flow 18m3/hr
Max Head 90m
Material Stainless Steel
