Grundfos CME 304 Stainless Steel Horizontal Multi-Stage Booster Pumps with new MGE/MLE motors represent the state-of-the-art speed-controlled motors and efficiency. Total efficiency of the new motor, including the frequency converter makes the CME unique for its class when it comes to efficiency.
The improved energy efficiency results in a 15% average reduction of full-load current.
The new MGE/MLE motors can communicate via infrared light and radio signals. As a result, they can be controlled and monitored by both the existing R100
remote control and the new Grundfos Go Remote.
CM 1 & CM 3 - 1" BSPF Suction/Discharge
CM 5 - 1 1/4" BSPF Suction / 1" BSPF Discharge
CM 10 - 1 1/2" BSPF Suction/Discharge
CM 15 & CM 25 - 2" BSPF Suction/Discharge
|Manufacturers Warranty||2 Years|

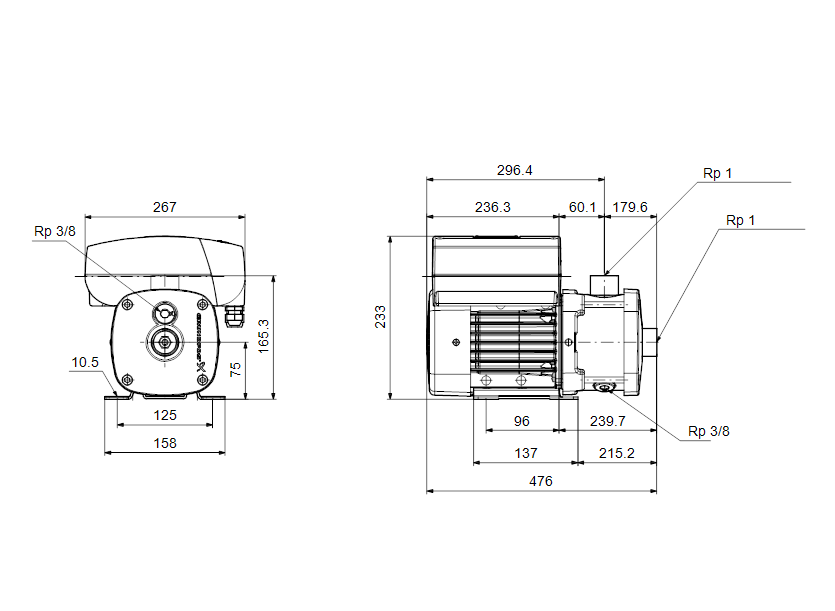

|Dimensions||233mm (h) x 268mm (w) x 473.9mm (d)|
|Motor Size (kW/W)||1.1 kW|
|Full Load Current (FLC)||2.20-1.90 A|
|Voltage||415V 3Ph 50Hz|
