Grundfos CME 1-3-I A R I E AQQE Horizontal Multi-Stage Booster Pump 415V

SKU
98394859
MRRP £1,530.00 + VAT Our price £1,071.00 (+ VAT) Incl. VAT: £1,285.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Grundfos CME 304 Stainless Steel Horizontal Multi-Stage Booster Pumps with new MGE/MLE motors represent the state-of-the-art speed-controlled motors and efficiency.  Total efficiency of the new motor, including the frequency converter makes the CME unique for its class when it comes to efficiency.

The improved energy efficiency results in a 15% average reduction of full-load current.

The new MGE/MLE motors can communicate via infrared light and radio signals. As a result, they can be controlled and monitored by both the existing R100
remote control and the new Grundfos Go Remote.



Pipe Connections

CM 1 & CM 3 - 1" BSPF Suction/Discharge

CM 5 - 1 1/4" BSPF Suction / 1" BSPF Discharge

CM 10 - 1 1/2" BSPF Suction/Discharge

CM 15 & CM 25 - 2" BSPF Suction/Discharge

More Information
SKU 98394859
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5711494279418
Weight 17.9 Kg

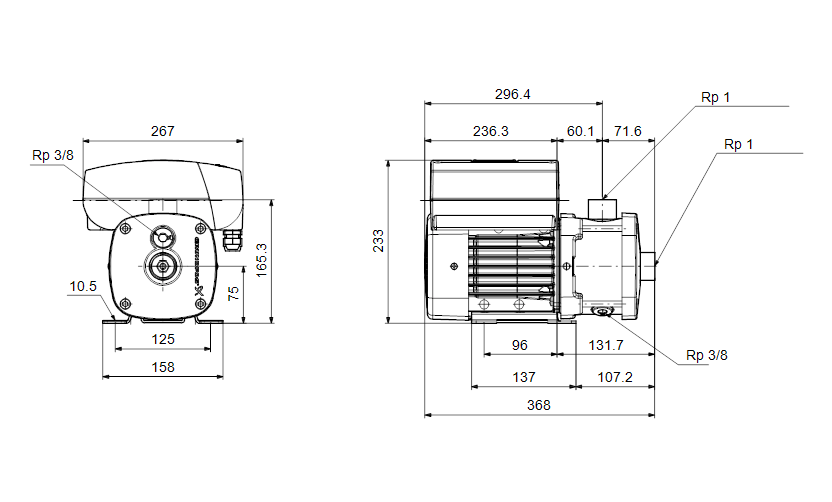

Dimensions 233mm (h) x 268mm (w) x 365.9mm (d)
Motor Size (kW/W) 0.55 kW
Full Load Current (FLC) 1.35/1.30A
Voltage 415V 3Ph 50Hz

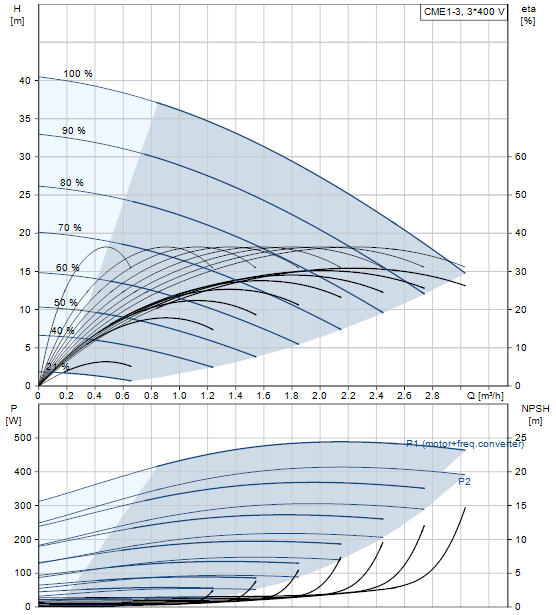

Max Flow 3.0m3/hr
Max Head 40m
Material Stainless Steel
