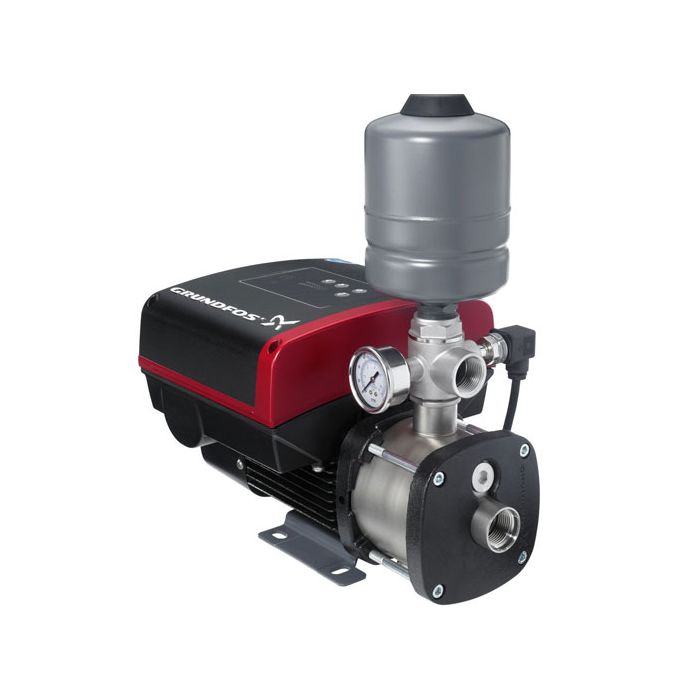

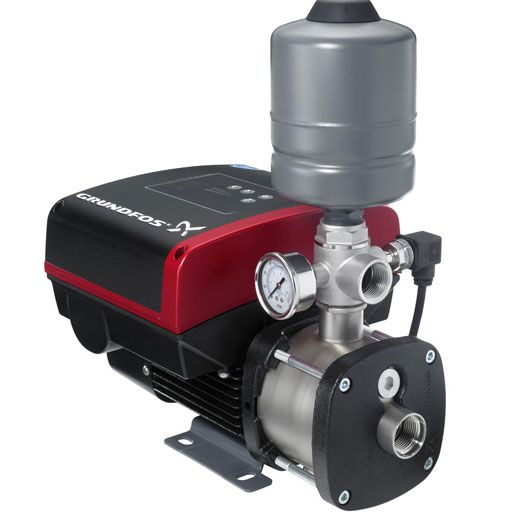

The Grundfos CMBE 5-62 (6.2 Bar) I-U-C-D-D-B 240V Compact Home Booster set is suitable for water supply in domestic applications. The integrated speed controller enables the CME Booster to keep constant pressure in the pipe system. A pressure sensor monitoring changes in the water consumption will signal to the speed controller to change the motor speed to adapt performance to the new situation.
The CME Booster is very easy to install. When the booster has been connected to the pipework, it is all a matter of plugging the plug into a socket, and the system is operational.
The CME 5 range has 1 1/4" BSPF suction and 1" BSPF discharge pipe connections (fittings not included with pump).
Pump supplied with 1.5m cable (no plug).
The CME Booster consists of these components:
- CME pump with integrated frequency converter
- 5-way fitting with non-return valved
- diaphragm tank
- pressure gauge
- pressure sensor.
- Constant pressure via integrated speed control
- robust, stainless steel
- easy installation
- dry-running protection
- low noise, 55 dBA.
- Single and Two Family Homes
- Hotels/Guest Houses
- Small Office Buildings
|Manufacturers Warranty||2 Years|

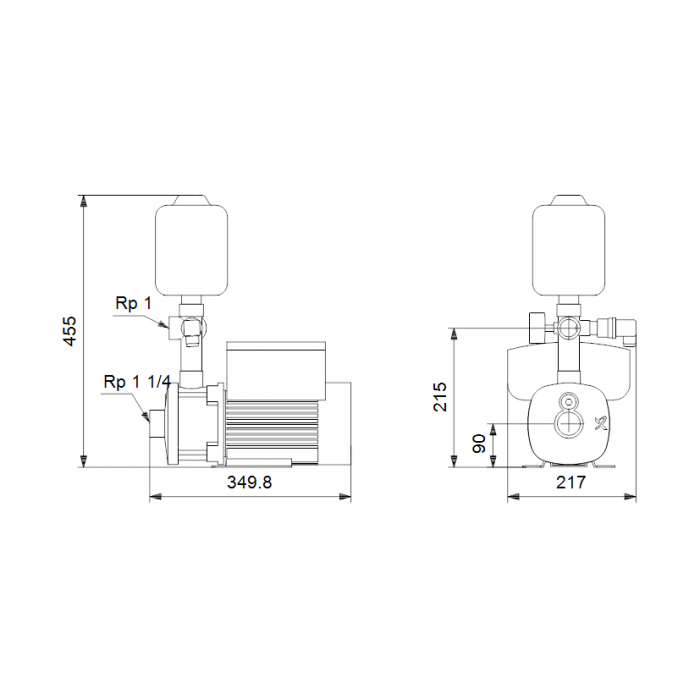

|Dimensions||467mm (h) x 221mm (w) x 345mm (d)|
|Motor Size (kW/W)||1.5 kW|
|Full Load Current (FLC)||9,10-7,60 A|
|Voltage||240V 1Ph 50Hz|
