Grundfos CMB 3-55 I C A D C A (5.5 Bar) Compact Home Booster with PM2-AD Pressure Manager 240V

MRRP £1,233.00 + VAT Our price £843.00 (+ VAT) Incl. VAT: £1,011.60
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CMB 3-55 (5.5 Bar) I-C-A-D-C-A 240V Compact Home Booster with pressure manager PM2 is used for water supply in domestic applications.  The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running.

The CM Booster is easily installed, just connect to the pipework, insert the plug into a socket and the system is operational.

The CM 3 range has 1" BSPF suction and discharge pipe connections (fittings not included with pump).

Pump is supplied with 1.5m cable (no plug).


  • compact
  • easy installation
  • automatic resetting of alarms
  • dry-running protection
  • anti cycling (leakage detection)
  • maximum continuous operating time


  • Single and Two Family Homes
  • Flats
  • Schools
  • Hotels/Guest Houses
  • Small Office Buildings

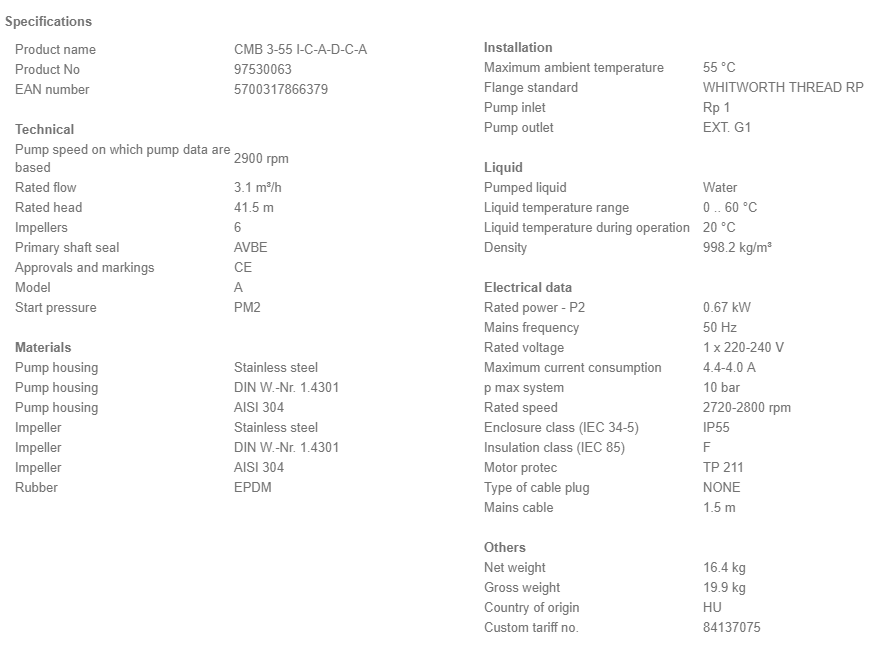

More Information
SKU 97530063
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700317866379
Weight 19.4 Kg

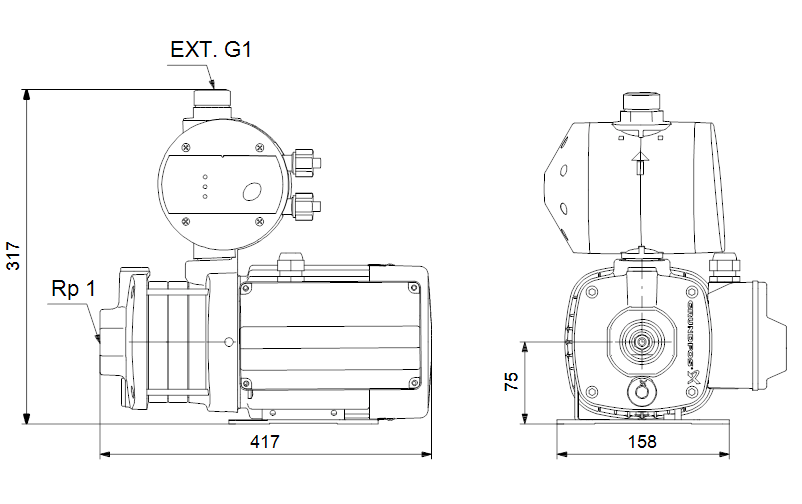

Dimensions 317mm (h) x 158mm (w) x 417mm (d)
Motor Size (kW/W) 0.37 kW
Full Load Current (FLC) 4,4-4,0 A
Voltage 240V 1Ph 50Hz
Max Flow 4.1m3/hr
Max Head 55m
Material Stainless Steel
