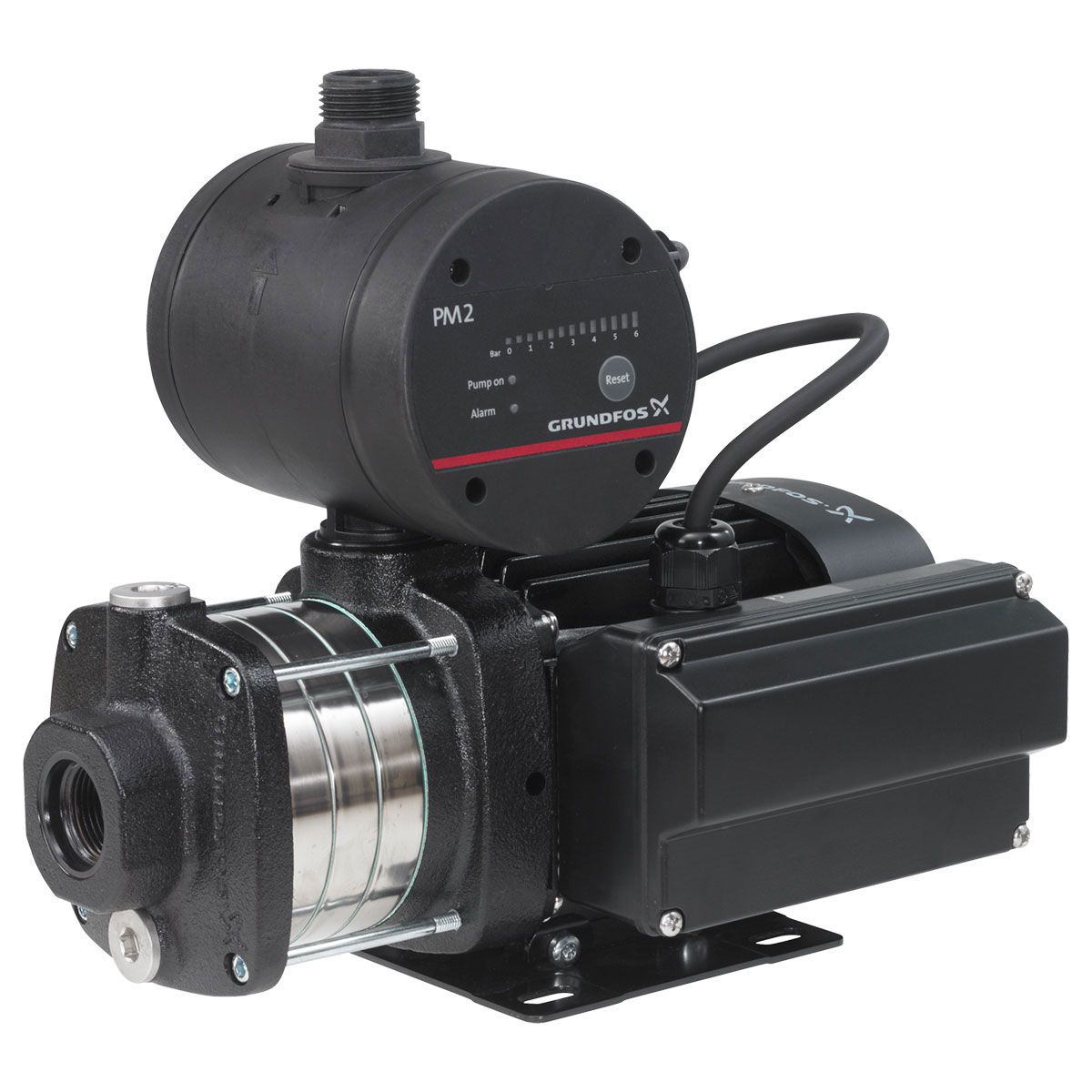

The Grundfos CMB1-36 (3.6 Bar) I-C-A-D-C-A 240V Compact Home Booster with pressure manager PM2 is used for water supply in domestic applications. The pressure manager allows the pump to start and stop automatically according to demand and protects the pump from dry running.
The CM Booster is easily installed, just connect to the pipework, insert the plug into a socket and the system is operational.
The CM 1 has 1" BSPF suction and discharge pipe connections (fittings not included with pump).
Pump is supplied with 1.5m cable (no plug).
- easy installation
- automatic resetting of alarms
- dry-running protection
- anti cycling (leakage detection)
- maximum continuous operating time
- Single and Two Family Homes

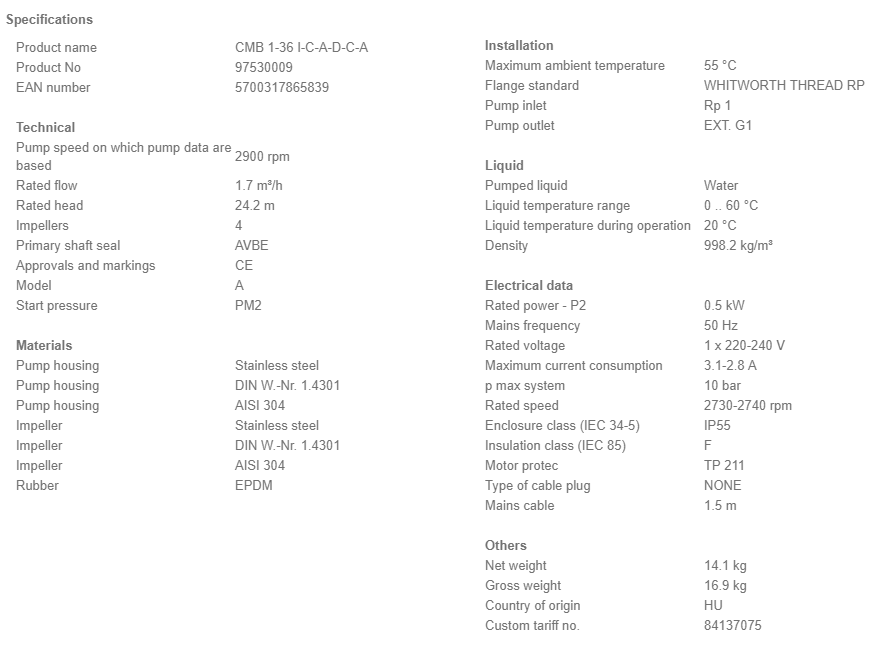

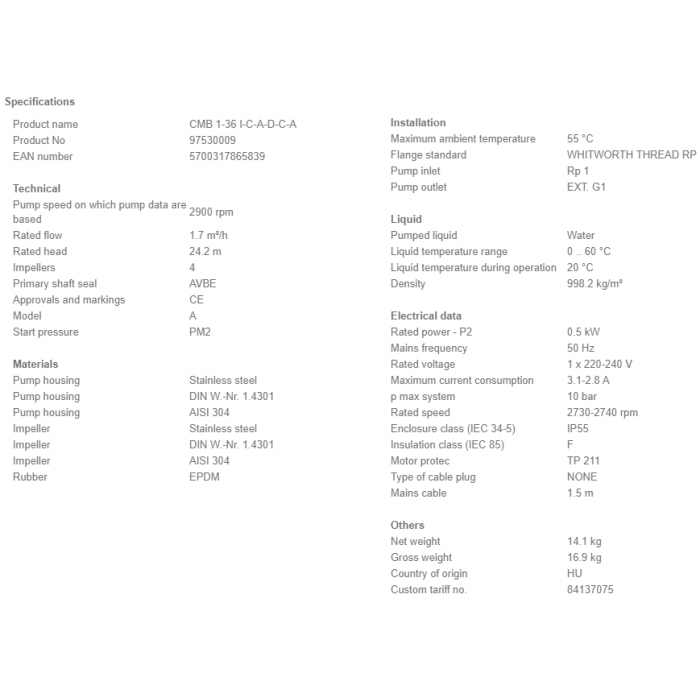

|Manufacturers Warranty||2 Years|

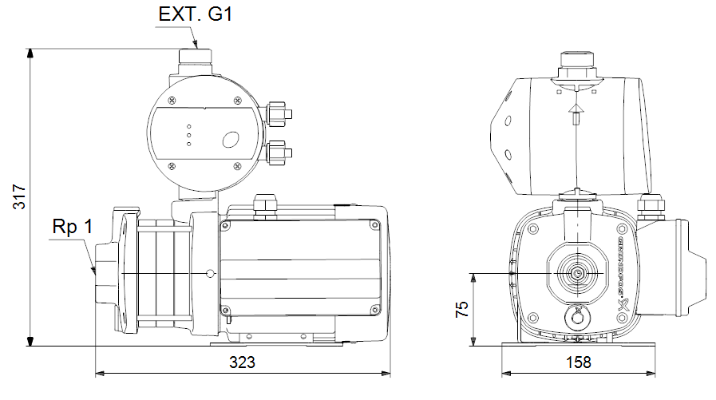

|Dimensions||317mm (h) x 158mm (w) x 323mm (d)|
|Motor Size (kW/W)||0.5 kW|
|Full Load Current (FLC)||3.1-2.8 A|
|Voltage||240V 1Ph 50Hz|
|Impeller Material||Stainless Steel|
