Grundfos CM 5-3 S R I E AQQE Self Priming Horizontal Multi-stage Booster Pump with MG71B 240V Motor

SKU
98482179
MRRP £950.00 + VAT Our price £665.00 (+ VAT) Incl. VAT: £798.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

This range of Grundfos CM pumps are self-priming, horizontal, multistage, end-suction centrifugal, that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Grundfos CM-SP pumps are made from 304 Stainless Steel (EN1.4301) with composite syphon and base valve.  CM-SP 1 and CM-SP 3 pumps have 1" BSPF suction and discharge pipe connections.

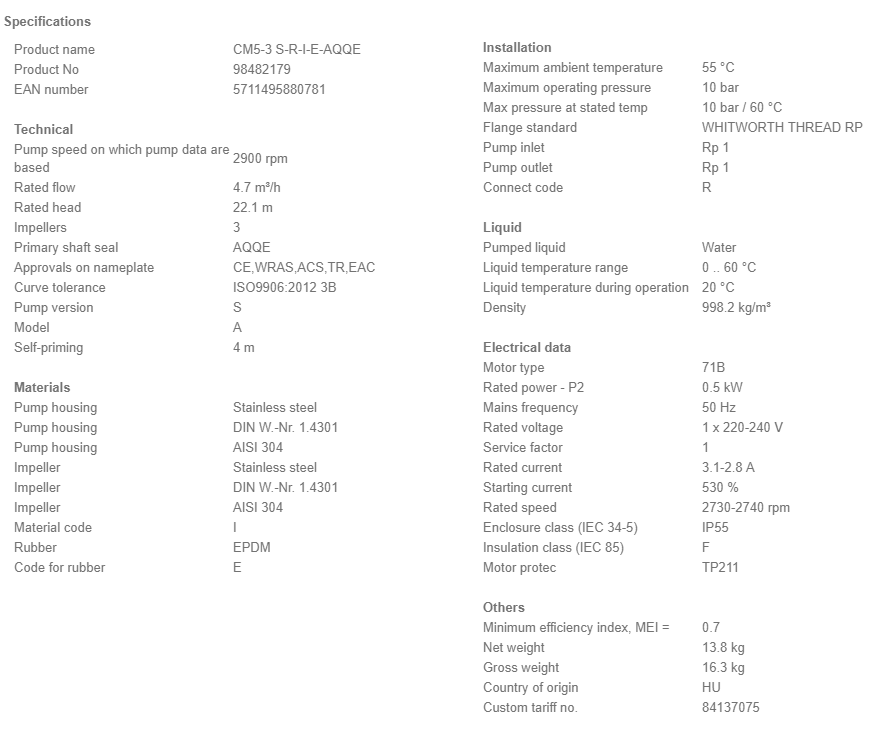

More Information
SKU 98482179
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5711495880781
Weight 14.9 Kg

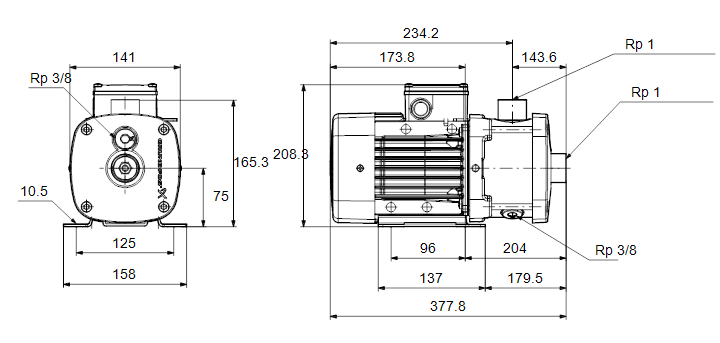

Dimensions 208mm (h) x 142mm (w) x 377mm (d)
Motor Size (kW/W) 0.5 kW/ MG71B
Full Load Current (FLC) 3.1/2.8A
Voltage 240V 1Ph 50Hz

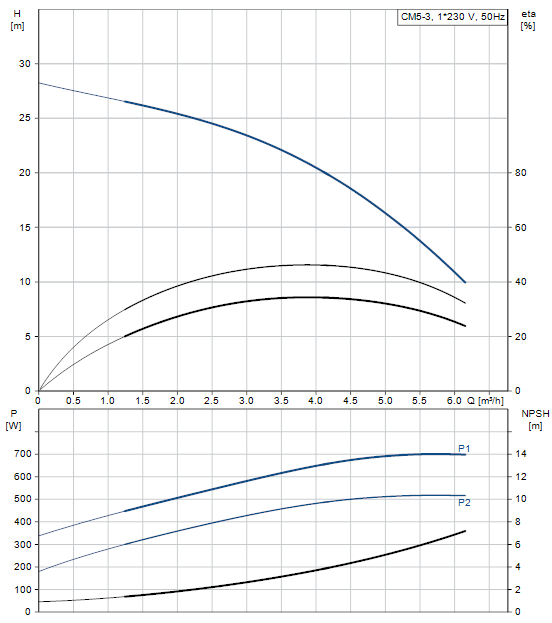

Max Flow 6m3/hr
Max Head 28.2m
Material Stainless Steel
