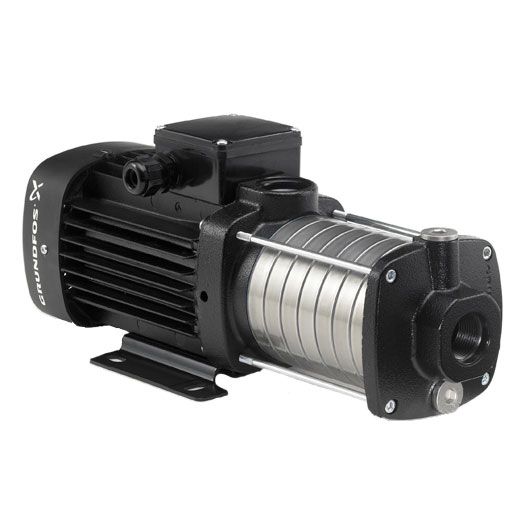

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- comprised machinery
- chemical industry
- pharmaceutical industry
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301). CM5 pumps have 1 1/4" BSPF Suction and 1" BSPF Discharge pipe connections.
|Manufacturers Warranty||2 Years|

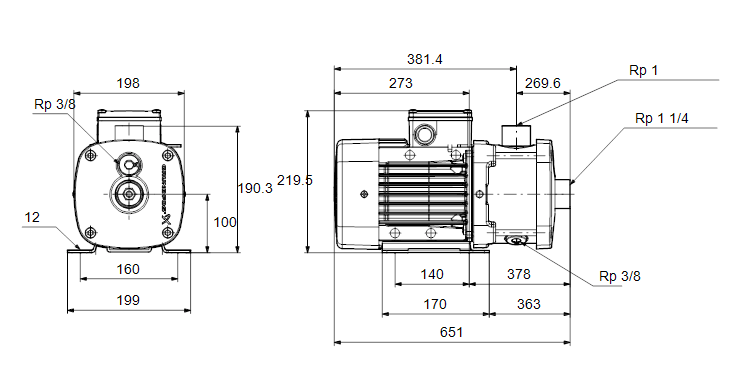

|Dimensions||220mm (h) x 199mm (w) x 650.5mm (d)|
|Motor Size (kW/W)||3.20 kW / 100A|
|Full Load Current (FLC)||11.8-11.0/6.75-6.40 A|
|Voltage||415V 3Ph 50Hz|
