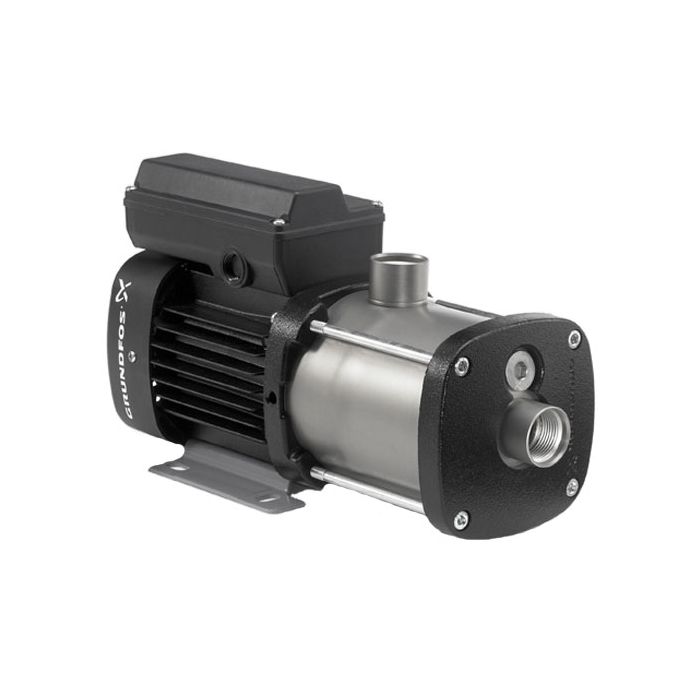

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- comprised machinery
- chemical industry
- pharmaceutical industry
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
Grundfos CM-G pumps are made from High Grade 316 Stainless Steel (EN1.4401). CM5 pumps have 1 1/4" BSPF suction and 1" BSPF discharge pipe connections.
|Manufacturers Warranty||2 Years|

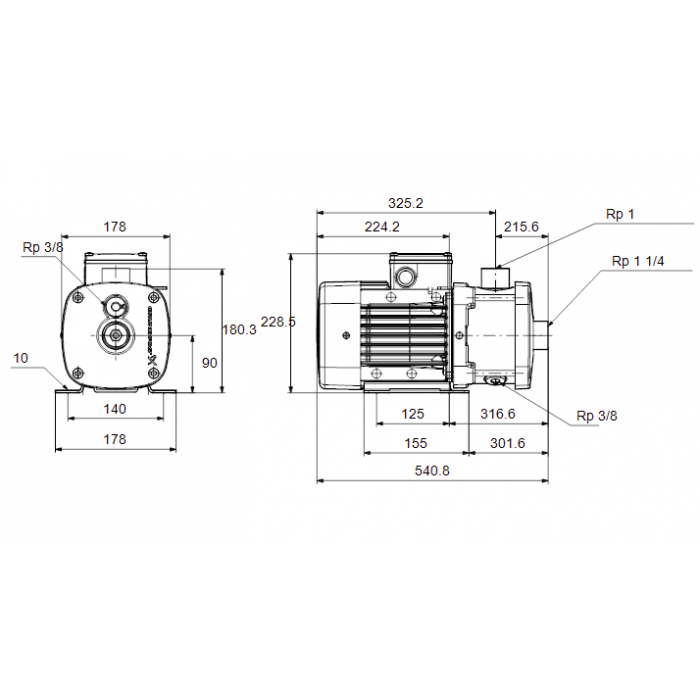

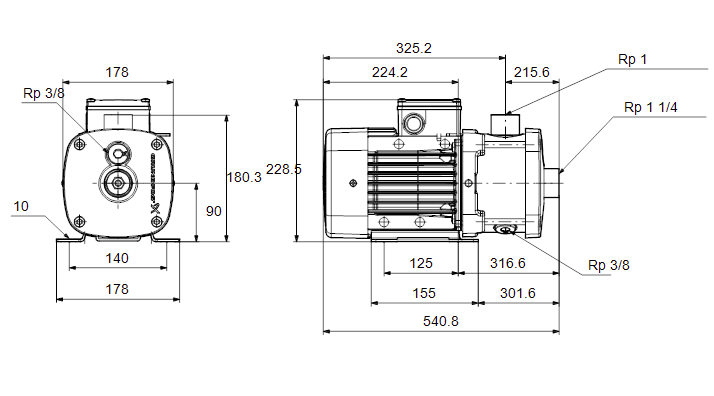

|Dimensions||229mm (h) x 178mm (w) x 538.5mm (d)|
|Motor Size (kW/W)||1.70 kW / MG90SB|
|Full Load Current (FLC)||11.0-10.0A|
|Voltage||240V 1Ph 50Hz|
