Grundfos CM 3-5 O R I E AQQE Self Priming Horizontal Multi-stage Booster Pump with MG71B 240V Motor

SKU
98482175
MRRP £1,023.00 + VAT Our price £717.00 (+ VAT) Incl. VAT: £860.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

This range of Grundfos CM pumps are self-priming, horizontal, multistage, end-suction centrifugal, that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The pump is self-priming and can create a suction lift of up to 4 metres. Pump materials in contact with the liquid are in stainless steel.  Pipework connection is via internal Whitworth pipe threads, Rp1.

More Information

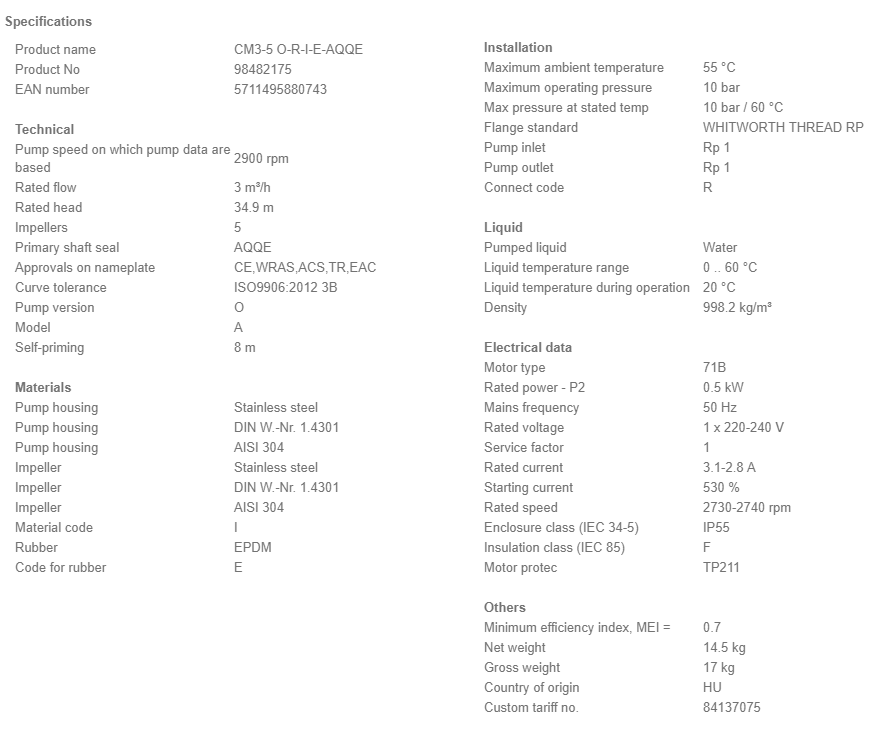

SKU 98482175
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5711495880743
Weight 15.6 Kg

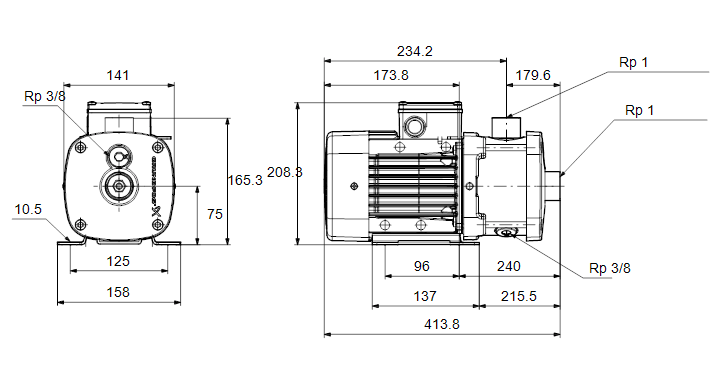

Dimensions 208mm (h) x 142mm (w) x 413mm (d)
Motor Size (kW/W) 0.5 kW / MG71B
Full Load Current (FLC) 3.1/2.8A
Voltage 240V 1Ph 50Hz

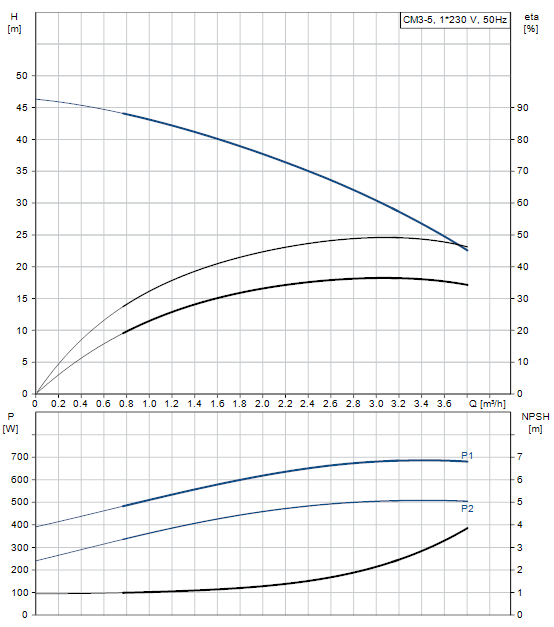

Max Flow 3.7m3/hr
Max Head 46m
Material Stainless Steel
