Grundfos CM 10-7-I A R I E AQQE FAAN Horizontal Multi-stage Booster Pump 415V

MRRP £2,513.00 + VAT Our price £1,760.00 (+ VAT) Incl. VAT: £2,112.00
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly


Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301).  CM 10 pumps have 1 1/2" BSPF Suction and Discharge pipe connections.

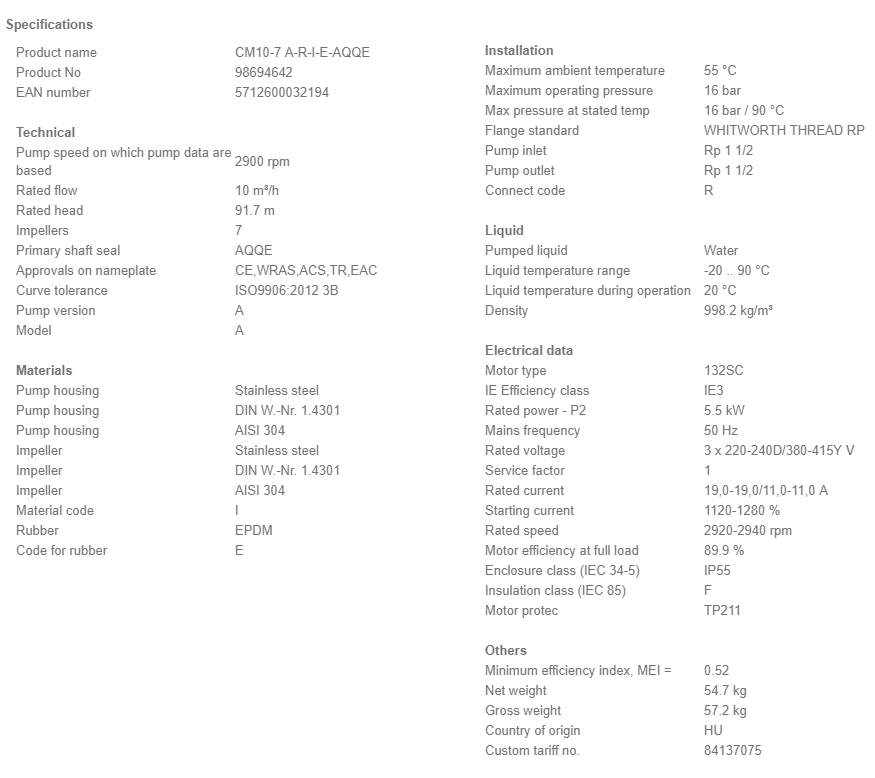

More Information
SKU 98694642
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700318886178
Weight 56.8 Kg

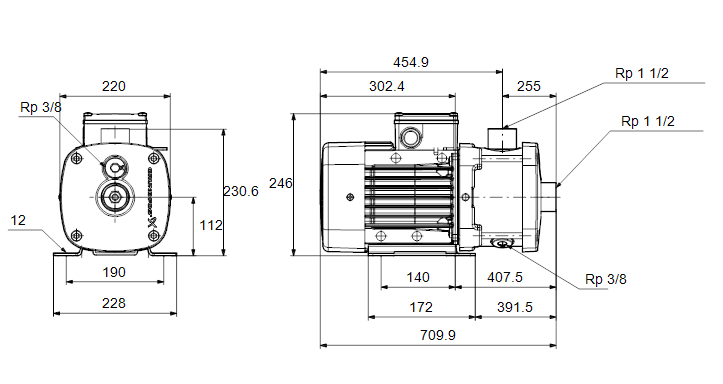

Dimensions 246mm (h) x 228mm (w) x 709mm (d)
Motor Size (kW/W) 5.80 kW / 132A
Full Load Current (FLC) 20.4-19.0/11.8-11.0 A
Voltage 415V 3Ph 50Hz
Max Flow 15m3/hr
Max Head 115m
Material Stainless Steel
