Grundfos CM 10-5-G A R G E AQQE FAAN Horizontal Multi-stage Booster Pump 415V

SKU
98917310
MRRP £2,759.00 + VAT Our price £1,932.00 (+ VAT) Incl. VAT: £2,318.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Grundfos CM-G pumps are made from high grade 316 Stainless Steel (EN1.4401).  CM 10 pumps have 1 1/2" BSPF Suction and Discharge pipe connections.

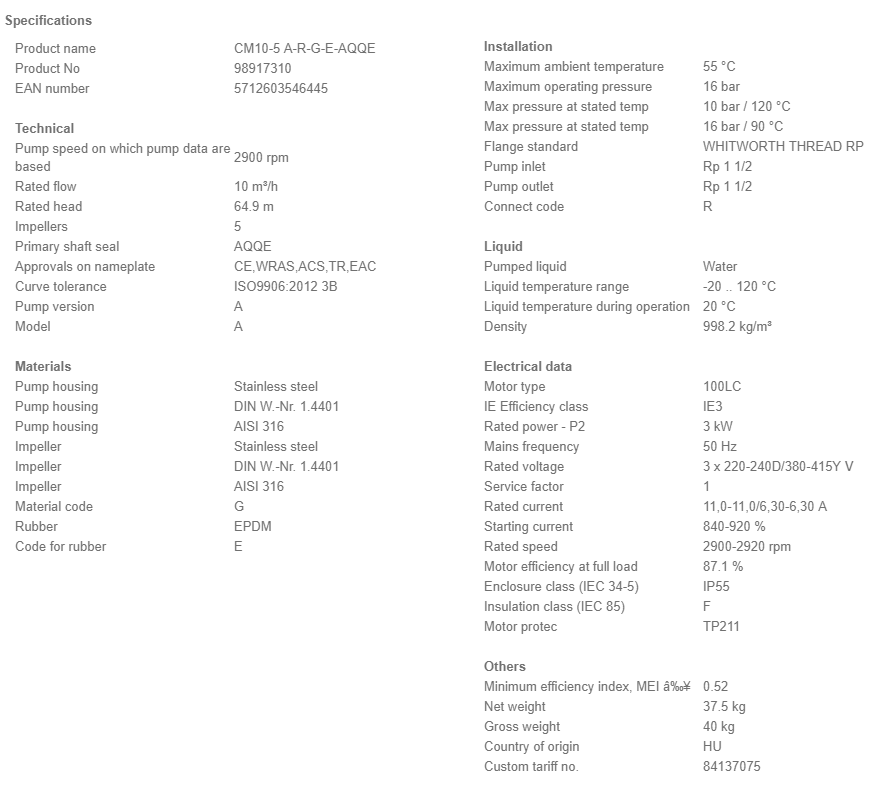

More Information
SKU 98917310
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700314292744
Weight 37.1 Kg

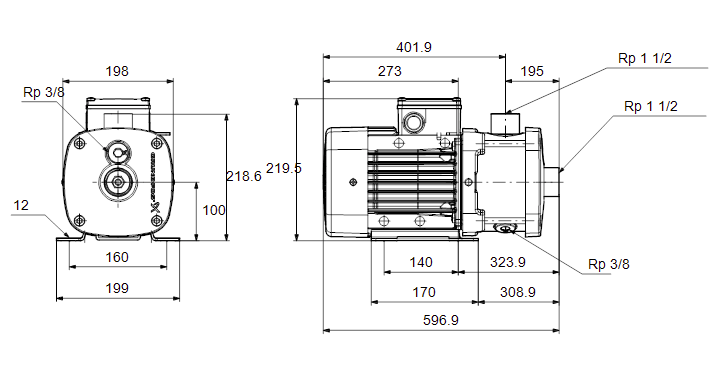

Dimensions 220mm (h) x 199mm (w) x 597mm (d)
Motor Size (kW/W) 3.20 kW / MG100LA Motor
Full Load Current (FLC) 11.8-11.0/6.75-6.40 A
Voltage 415V 3Ph 50Hz
Max Flow 15m3/hr
Max Head 80m
Material Stainless Steel
