The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- comprised machinery
- chemical industry
- pharmaceutical industry
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301). CM 10 pumps have 1 1/2" BSPF Suction and Discharge pipe connections.

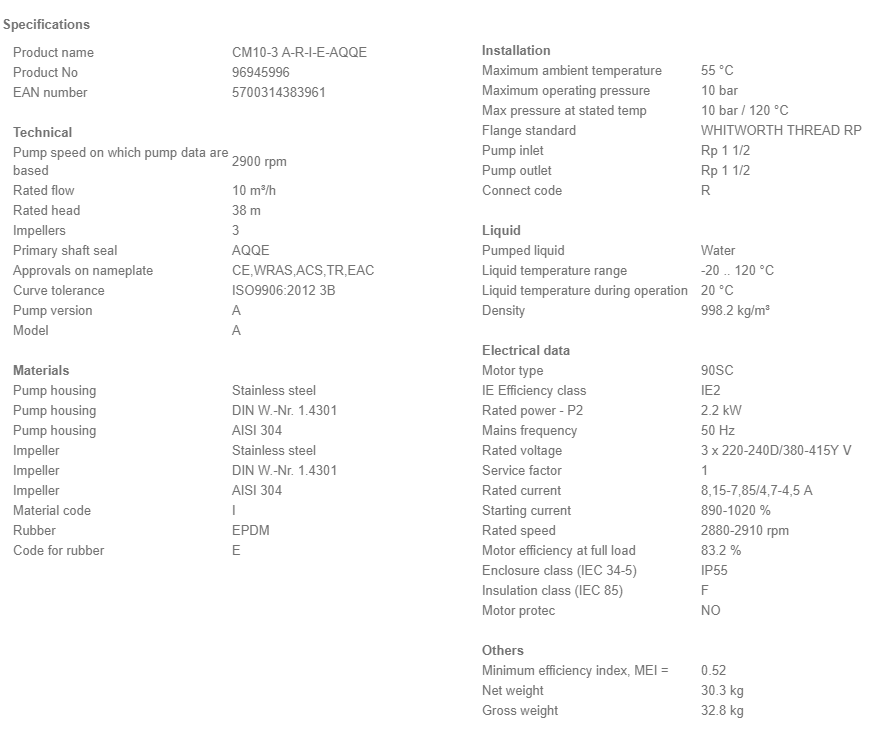

|Manufacturers Warranty||2 Years|
|Dimensions||210mm (h) x 199mm (w) x 490mm (d)|
|Motor Size (kW/W)||2.20 kW / 90A|
|Full Load Current (FLC)||8.15-7.85/4.7-4.5 A|
|Voltage||415V 3Ph 50Hz|
