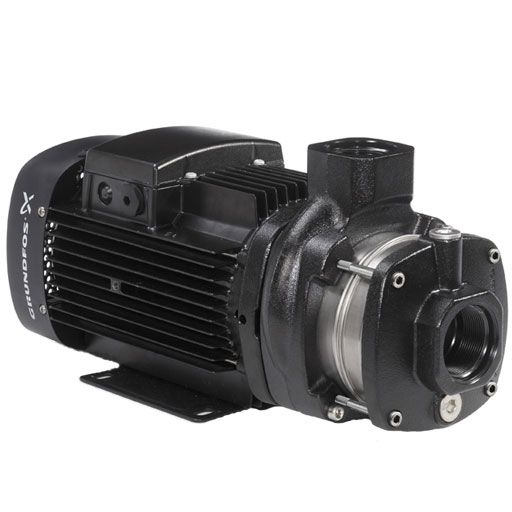

Grundfos CM 10-2-I A R I E AQQE FAAN Horizontal Multi-stage Booster Pump 415V

SKU
98719394
MRRP £1,224.00 + VAT Our price £857.00 (+ VAT) Incl. VAT: £1,028.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly



Grundfos CM-I pumps are made from 304 Stainless Steel (EN1.4301).  CM 10 pumps have 1 1/2" BSPF Suction and Discharge pipe connections.



More Information
SKU 98719394
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700314383886
Weight 21.5 Kg
Dimensions 209mm (h) x 158mm (w) x 419mm (d)
Motor Size (kW/W) 1.20 kW / 80A
Full Load Current (FLC) 4.8-5.2/2.8-3 A
Voltage 415V 3Ph 50Hz
Max Flow 14.5m3/hr
Max Head 32m
Material Stainless Steel
Old Sku 96945992
