This range of Grundfos CM pumps are self-priming, horizontal, multistage, end-suction centrifugal, that are suitable for applications ranging from small domestic installations to large industrial systems.
- washing and cleaning
- water treatment
- temperature control
- pressure boosting
- distilling systems
- comprised machinery
- chemical industry
- pharmaceutical industry
- Compact design
- Modular construction/customised solutions
- Energy-optimised pumps
- Worldwide usage
- High reliability
- Easy installation and commissioning
Compact, reliable, horizontal, multistage, end-suction centrifugal pump with axial suction port and radial discharge port. The pump is self-priming and can create a suction lift of up to 4 meter metres. Pump materials in contact with the liquid are in stainless steel. Pipework connection is via internal Whitworth pipe threads, Rp1.

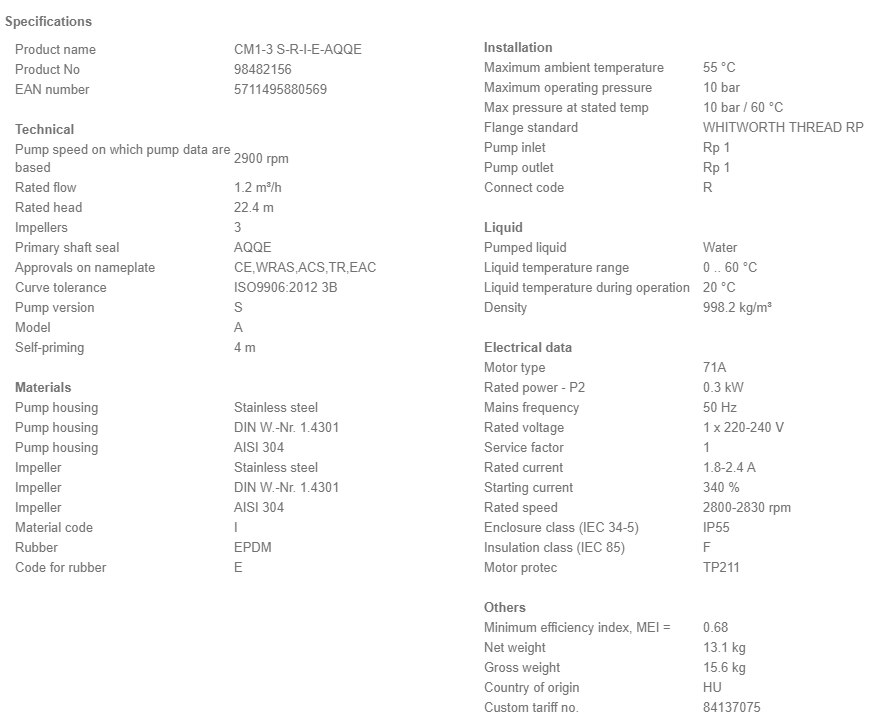

|Manufacturers Warranty||2 Years|

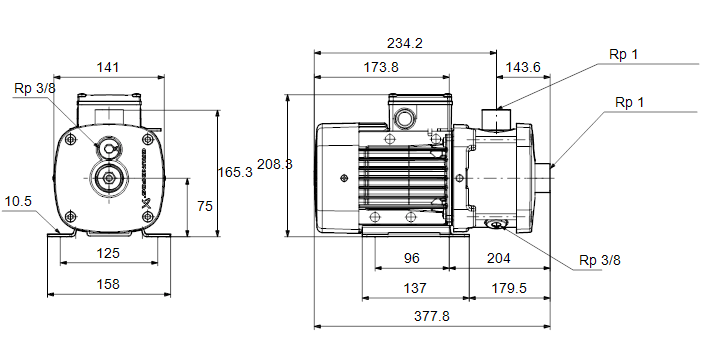

|Dimensions||208mm (h) x 142mm (w) x 377mm (d)|
|Motor Size (kW/W)||0.3 kW / MG71A|
|Full Load Current (FLC)||1.8/2.4A|
|Voltage||240V 1Ph 50Hz|
