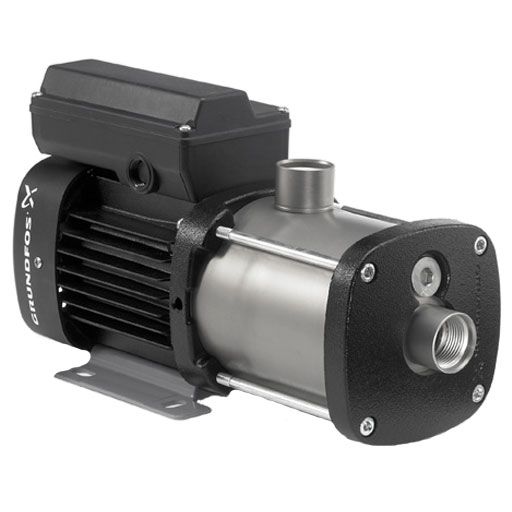

Grundfos CM 1-3-G A R G E AQQE CAAN Horizontal Multi-stage Booster Pump 240V

MRRP £713.00 + VAT Our price £500.00 (+ VAT) Incl. VAT: £600.00
Order within
for next day delivery i

The Grundfos CM pumps are non-self-priming, horizontal, multistage, end-suction centrifugal pumps that are suitable for applications ranging from small domestic installations to large industrial systems.

Typical applications:

  • washing and cleaning
  • water treatment
  • temperature control
  • pressure boosting
  • distilling systems
  • dosing/mixing
  • evaporation
  • comprised machinery
  • chemical industry
  • pharmaceutical industry

Standard features:

  • Compact design
  • Modular construction/customised solutions
  • Energy-optimised pumps
  • Worldwide usage
  • High reliability
  • Easy installation and commissioning
  • Service-friendly


Grundfos CM-G pumps are made from High Grade 316 Stainless Steel (EN1.4401).  CM1 and CM3 pumps have 1" BSPF pipe connections.

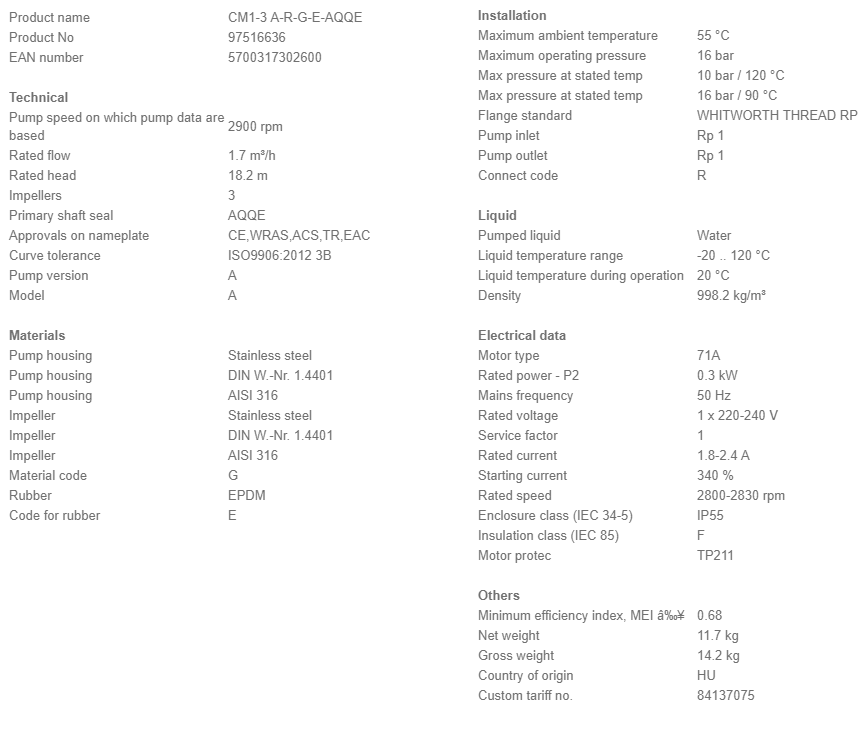

More Information
SKU 97516636
Manufacturer Grundfos
Manufacturers Warranty 2 Years
GTIN 5700317302600
Weight 14.2 Kg

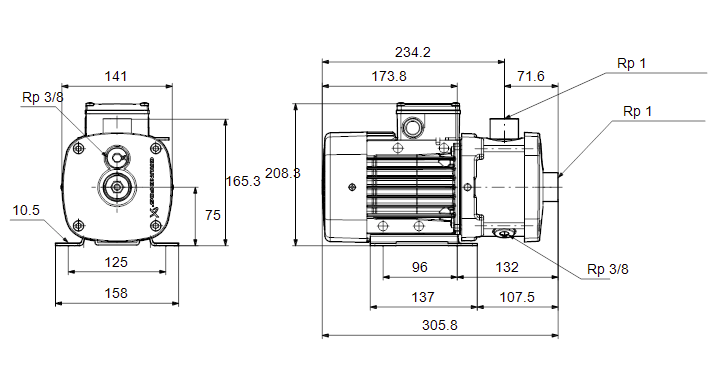

Dimensions 208mm (h) x 158mm (w) x 305mm (d)
Motor Size (kW/W) 0.30 kW / MG71A Motor
Full Load Current (FLC) 1.8-2.4A
Voltage 240V 1Ph 50Hz

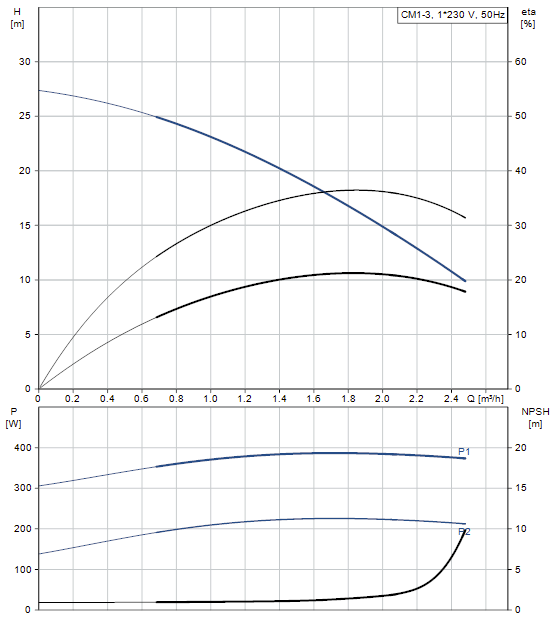

Max Flow 2.5m3/hr
Max Head 27m
Material Stainless Steel
