This pump is now obsolete and has been replaced by the Alpha1 20-45N part number 98475986.

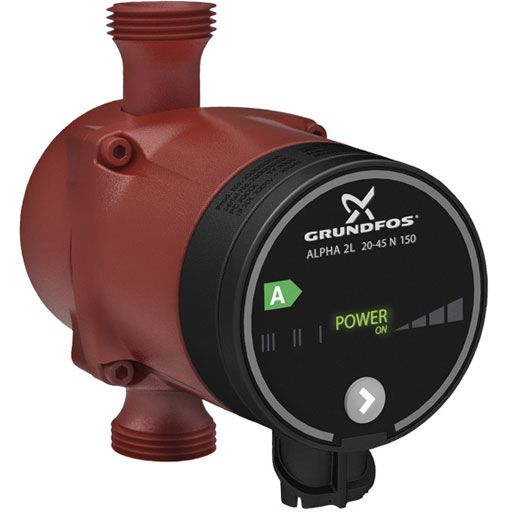

The Grundfos ALPHA2L 20-45N (150) 'A' Rated/EuP Ready domestic hot water service circulator is the most advanced energy efficient domestic circulator of its kind. It is the ideal choice for a variety of domestic hot water systems, with both variable speed pressure controlled operation and standard selectable three speed operation.
The ALPHA2L is an A Rated Energy labelled product, achieving the highest possible energy savings under the energy labelling scheme.
The reduction in power consumption has been achieved by using the latest permanent magnet motor technology. Using pressure controlled operation power consumption can be reduced to as low as 5 watts.

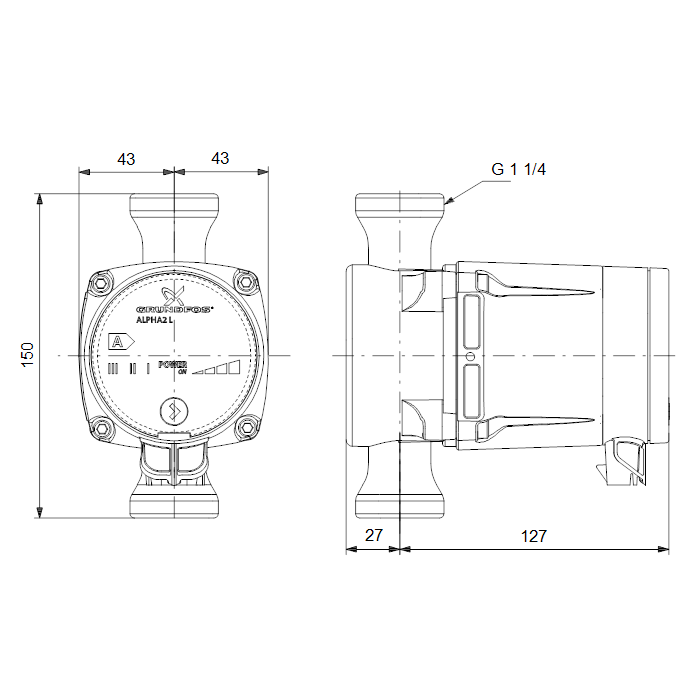

This pump has 150mm port to port dimensions. Fittings not included, see accessories tab below for more options.
|Manufacturers Warranty||2 Years|
|Dimensions||150mm (h) x 86mm (w) x 154mm (d)|
|Motor Size (kW/W)||7-45W|
|Full Load Current (FLC)||0.07-0.34A|
|Voltage||240V 1Ph 50Hz|
