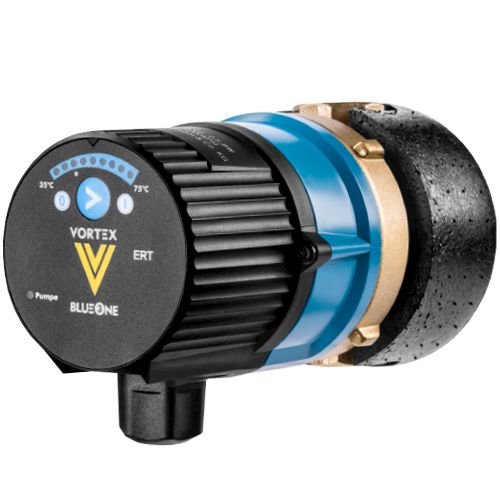

DAB Vortex BWO 155V Electronic Thermostat (1 1/4") Hot Water Circulator 240v

SKU
433111061
MRRP £405.00 + VAT Our price £284.00 (+ VAT) Incl. VAT: £340.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

PUMP HOUSING

V-pump housing

1 1/4" male connection thread; fitting set, with 1/2" male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell.

R-pump housing

1/2" female connection thread, insulation shell.



DRIVE

Permanent magnet drive

The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.

Spherical motor technology

The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.



CONTROL MODULE

ERT - ELECTRONIC CONTROL THERMOSTAT

The thermostat switches off the pump at the set temperature. The shutdown temperature is set using a pushbutton and is immediately active.

  • Shutdown temperature adjustable in 5° increments from 35 °C to 75 °C
  • Start point 7 K below the shutdown temperature
More Information
SKU 433111061
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 3.0 Kg
Voltage 240V 1Ph 50Hz
RPM 2000-3000
Max Flow 950 l/h
Max Head 1.3m
Max Pressure 10 bar
Max Temperature 95°C
Manufactured In Germany
