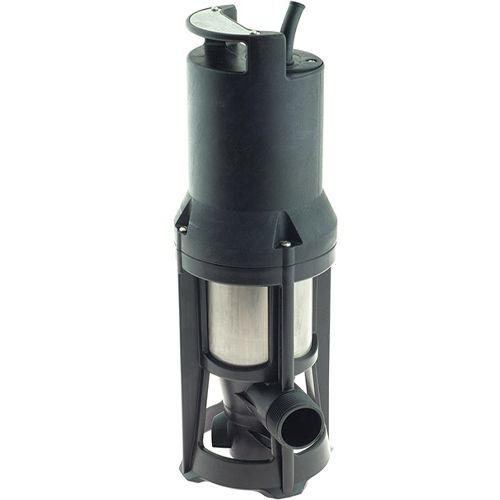

DAB NOVAIR 200 M-NA 2m Cable Submerged Aerator 240v

SKU
60168124
MRRP £276.00 + VAT Our price £194.00 (+ VAT) Incl. VAT: £232.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
The submerged aerator is designed for liquid waste aeration in small water treatment systems. Other fields of application include pond water oxygenation and fish farms.

ADVANTAGES
Thanks to its specific design, the new NOVAIR system guarantees optimal oxygenation of water treatment plants by means of a large and thick cloud of fine bubbles. The fluid dynamics study has been mainly focused on the impeller’s blade profiles, with a view to avoid damaging microorganisms present in the water when starting operation. As the aerator is installed vertically, its body is supplied with a supporting base. Technically speaking, motor cooling is guaranteed by large contact surfaces between motor casing and the liquid. The power cable is coated with resin against humidity and leaks and cabling has been made easier, in order to favour maintenance operations and cable replacement. The excellent wear resistance of the stainless steel motor shaft, with ceramic bush around the sealing rings, guarantees long product durability.

CONSTRUCTION FEATURES
Pump body, cable cover and impeller in technopolymer. Two-pole asynchronous submergible type motor from 0.18 and 0.4 kW with built-in thermal protection and permanently connected capacitor installed in the cable compartment. Steel motor shaft mounted on oversized, greased sealed-for-life ball bearings with ceramic bush. Triple interposed ring seal with oil pre-chambercon precamera d’olio.

More Information
SKU 60168124
Weight 4.0 Kg
Dimensions 330mm (h) x 158mm (d)
Manufacturer DAB
Manufacturers Warranty 2 Years
Material Plastic
Impeller Material Technopolymer
Voltage 240V 1Ph 50Hz
Max Flow 80l/min
Max Head 8m
Full Load Current (FLC) 1.4A
Motor Size (kW/W) 0.18kW
Cable Length 2m
Immersion Depth 80cm
