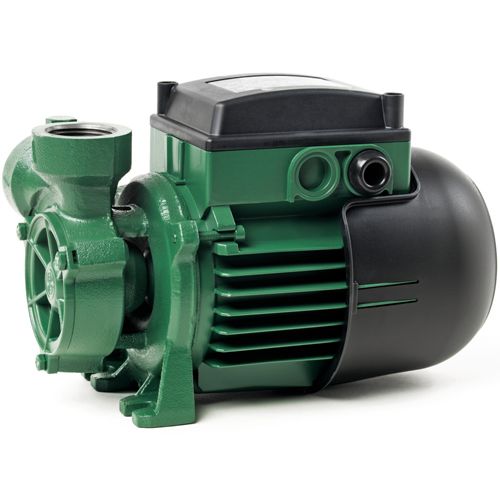

DAB KPS 30/16 T Peripheral Pump 415v

SKU
101110014
MRRP £266.00 + VAT Our price £187.00 (+ VAT) Incl. VAT: £224.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Peripheral centrifugal pump with compact dimensions. Able to generate high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for small industrial uses.

Operating range: from 5 to 50 l/min with head up to 84 metres.

Brass pump body and motor support for KP 60/6 and KP 60/12. Cast iron pump body with radial suction for KP and KPS, frontal suction for KPF.

Brass impeller. Carbon/ceramic mechanical seal. IP44.

Liquid temperature range: from 0 °C to +35 °C for domestic use, from -10°C to +50°C for other uses.

APPLICATIONS
Peripheral centrifugal pump with compact dimensions. Capable of generating high heads and suitable for domestic installations, water supply systems, small gardening applications, draining and filling cisterns, and for light industrial uses, such as feeding pressurized boilers (anti-condensation).

CONSTRUCTION FEATURES OF THE PUMP
Brass pump body and motor support for KP 60/6 and KP 60/12. Pump body with radial suction for KP and KPS; front suction for KPF. Cast iron support with brass wear disc for KPS 30/16 and KP 38/18. KPS 30/16 is available on request with bronze pump body and support. Brass impeller. Carbon/ceramic mechanical seal.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3 and CEI 61-69 (EN 60335-2-41).

More Information
SKU 101110014
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 5.0 Kg
Dimensions 158mm (h) x 228mm (w) x 165mm (d)
Inlet Dimension 1" BSPF
Discharge Dimension 1" BSPF
Motor Size (kW/W) 0.37kW
Full Load Current (FLC) 1.4-0.8A
Voltage 415V 3Ph 50Hz
Max Flow 2m3/hr
Max Head 25m
Max Pressure 2.5 Bar
Max Temperature 50°C
Material Cast Iron
