DAB Feka VS Grinder 1000 TNA Submersible Grinder Pump Without Float Switch 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

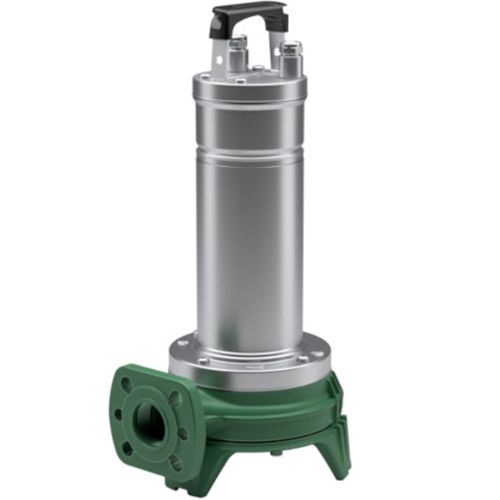

DAB Feka VS Grinder 1000 TNA Submersible Grinder Pump Without Float Switch 415v - 60211235H
Submersible pump for draining wastewater in commercial building service. The pump is certified to the European Union standard EN 12050-1 which applies to lifting systems for waste water containing fecal material in buildings and construction sites. Thanks to the shredder, the pump is suitable for systems with small diameter pipes or those requiring high pressures. Pump suitable for fixed installations with coupling device or mobile installation if placed directly on the bottom of the tank. Construction according to CEI 2-3 CEI 61-69 (EN 60335-2-41) standards. Single-phase versions is available in automatic version with integrated float switch or in the manual version without float switch.
The DN32/DN40 flanged connection and the 40mm / 1½" threaded connection make Feka VS Grinder the perfect solution not just for new installations, but even for replacing obsolete pumps in existing systems or systems with small diameter pipework.
Powerful shredding, plug & play functionality, and connection flexibility make this product an ideal candidate for a wide range of installations.
Applications & Installations:
- Campsites or tourist facilities where, in addition to shredding power, a high head is also needed to reach particularly distant sewer connections
- HoReCa businesses where the use of oils and soaps tends to result in greater pump wear and tear
- Cellars and basements with pipework that has a small diameter or is prone to clogging
- Civil engineering applications with reservoirs that have to deal with various unscreened material
- Residential use for example, including rainwater collection tanks
- Processing with water that is non-acidic but contains stringy material of varying density, meaning high pressure is needed to transfer wastewater
SKU | 60211235H |
---|---|
Manufacturer | DAB |
Manufacturers Warranty | 2 Years |
Weight | 23.0 Kg |

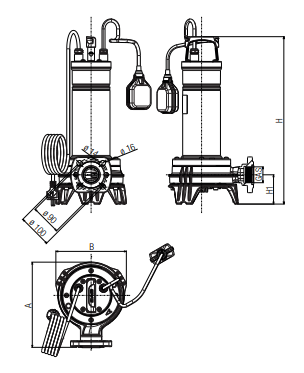

Dimensions | 496mm (h) x 253mm (d) |
Connection Type | 1 1/2 Inch BSP |
Motor Size (kW/W) | 1kW |
Full Load Current (FLC) | 3A |
Voltage | 415V 3Ph 50Hz |

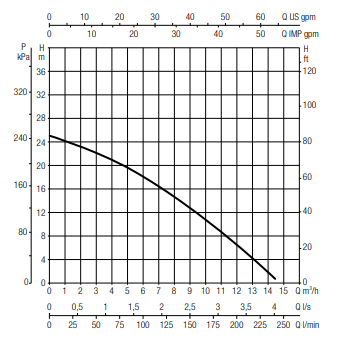

Max Flow | 14.4m3/hr |
Max Head | 25m |
Max Temperature | 40°C |
Material | Cast Iron |
Impeller Material | Cast Iron |
