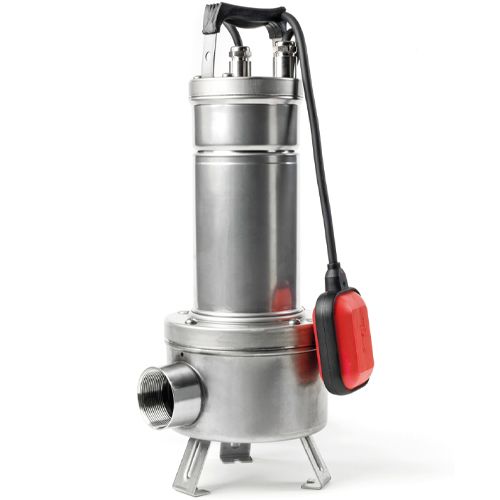

DAB FEKA VS 550 M-A Submersible Wastewater Pump 240v

SKU
103042300
MRRP £543.00 + VAT Our price £381.00 (+ VAT) Incl. VAT: £457.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

DAB FEKA VS 550 M-A Submersible Wastewater Pump 240v - 103042300

APPLICATIONS Stainless steel submersible centrifugal pump with microcast steel liquid vortex impeller, suitable for lifting sewage and drain water in general containing solid matter with size up to 50 mm.

CONSTRUCTION FEATURES OF THE PUMP AISI 304 stainless steel pump body, seal cover, motor cover, and cap with handle. Microcast steel impeller. Insulating rubber covered handle. AISI 316 stainless steel motor shaft. Double mechanical seal with interposed oil chamber (non-toxic oil) in carbon-alumina on the motor side, and silicon carbide/ silicon carbide on the pump side.

CONSTRUCTION FEATURES OF THE MOTOR Dry, asynchronous and waterproof motor, cooled by the pumped liquid. Rotor running on permanently lubricated ball bearings, selected to ensure low noise and durability. Overcurrent protection as standard for the single-phase version, optional for the three-phase version. Permanently connected capacitor in the single-phase version. Continuous duty with liquid temperature 35 °C and completely submerged pump. The single-phase version can be supplied with float for automatic operation. Power cable: 10 metre H07RN-F, with plug for the single-phase version. Number of poles: 2 Max starts/hour: 20

More Information
SKU 103042300
Weight 16.0 Kg
Dimensions 492mm (h) x 203mm (dia)
Manufacturer DAB
Manufacturers Warranty 2 Years
Material Stainless Steel
Impeller Material AISI 304 Microcast Steel
Connection Type 2 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 20m3/hr
Max Head 7m
Full Load Current (FLC) 4.2A
Motor Size (kW/W) 0.93kW
Float Switch Yes
Immersion Depth 7m
