DAB FEKA FXC 25.15 TNA 400/50 Submersible Wastewater Pump 415v

SKU
60191253
MRRP £1,690.00 + VAT Our price £1,183.00 (+ VAT) Incl. VAT: £1,419.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

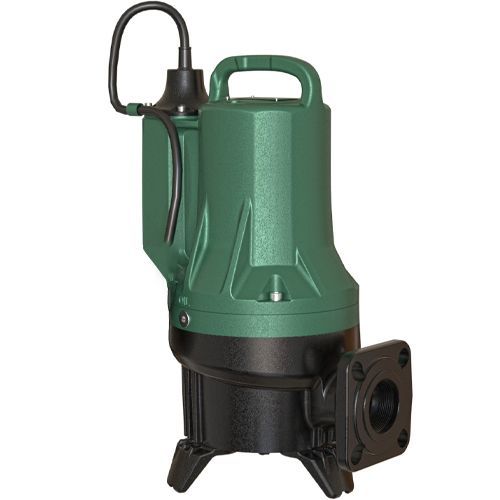

DAB FEKA FXC 25.15 TNA 400/50 Submersible Wastewater Pump 415v - 60191253

Feka FXC is a submersible pump for the drainage of sewage in commercial building service. The pump is certified according to the wastewater standard EN 12050-2. Pump suitable for fixed installations with a coupling device or mobile if placed directly on the bottom of the tank. Suitable for waste water without long fibers, rainwater and ground water. The pump is suitable for draining rooms subject to flooding, when high flow rates are required. The pump is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components. Automatic versions with power up to 1.5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb).

CONSTRUCTION FEATURES OF THE PUMP
Channel impeller with anti-lock system, 50 mm free passage. Pump body and impeller in cast iron. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid. Delivery port both flanged and threaded.

CONSTRUCTION FEATURES OF THE MOTOR
Available with single-phase asynchronous motor (MA / MNA versions) and three-phase motor (TNA versions). Rotor mounted on lubricated bearings. Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor windings with intervention threshold at +130°C. Quick-bonded resin-bonded cable gland, 07RN8-F power cable. Single-phase versions with integrated capacitor, available with float for automatic operation (MA version) with power up to 1.5 kW. In the three-phase motors the over-temperature sensor connection is responsibility of the user.

More Information
SKU 60191253
Weight 43.0 Kg
Dimensions 478mm (h) x 322mm (dia)
Manufacturer DAB
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Cast Iron
Connection Type 2 1/2 Inch Flanged
Voltage 415V 3Ph 50Hz
Max Flow 60m3/hr
Max Head 15m
Full Load Current (FLC) 3.6A
Motor Size (kW/W) 1.9kW
Cable Length 10m
Immersion Depth 20m
