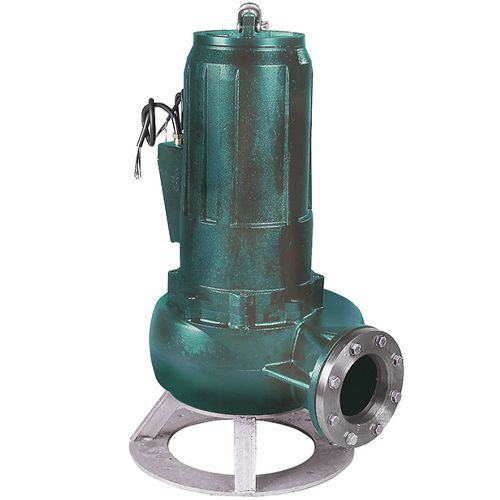

DAB FEKA 6200.4T S/D Submersible Wastewater Pump 415v

SKU
103019050
MRRP £10,425.00 + VAT Our price £7,298.00 (+ VAT) Incl. VAT: £8,757.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Submersible electric pump for civil and industrial drain water compatible with the pump materials. Suitable for lifting or decanting loaded cesspool water, sewage water in systems with grids from cesspools, meteoric water, or dirty water in general, containing solid non-filamentous matter with diameter up to 80 mm.

CONSTRUCTION FEATURES OF THE PUMP
Single-channel impeller with rotating and fixed wear ring on the diffuser.
Flanged delivery port, EN 1092-1. DN 150 PN 16.
Carbon/Steel mechanical seal in oil chamber on the motor side, double SiC/SiC mechanical seal on the pump side.

CONSTRUCTION FEATURES OF THE MOTOR
Dry, asynchronous and waterproof motor, cooled by the surrounding liquid. Continuous S1 duty with completely submerged pump. Rotor mounted on permanently lubricated ball bearings, oversized to ensure long-term reliability and extended lifetime. Water infiltration sensor in oil chamber, capable of indicating water infiltrations through the mechanical seal (standard). Overtemperature sensors in the motor windings, with 150 °C tripping threshold.
Standard voltage: 3x400V~. For other models contact our commercial department.
Start-up type: star-triangle (Y/∆)
Number of poles: 4
Motor protection class: IP 68
Insulation class: F
Max starts/hour: 20

More Information
SKU 103019050
Weight 226.0 Kg
Dimensions 950mm (h) x 590mm (d)
Manufacturer DAB
Manufacturers Warranty 2 Years
Material Cast Iron
Impeller Material Cast Iron
Connection Type 150mm Flanged
Voltage 415V 3Ph 50Hz
Max Flow 360m3/hr
Max Head 21m
Full Load Current (FLC) 30A
Motor Size (kW/W) 14.9kW
Immersion Depth 20m
