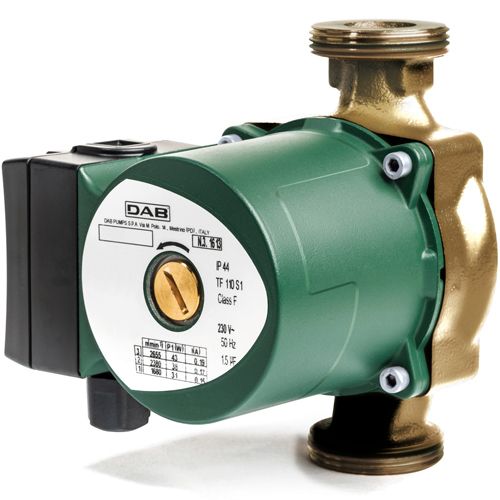

DAB Evo VS 65/150 B 3-Speed Bronze Circulator 240v

SKU
60185007H
MRRP £446.00 + VAT Our price £129.00 (+ VAT) Incl. VAT: £154.80
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

DAB Evo VS 65/150 B 3-Speed Bronze Circulator 240v - 60185007H

APPLICATIONS
Pump for hot for water circulation in pressurised closed circuit, or open circulation type, domestic heating and air conditioning systems.


CONSTRUCTION FEATURES
Single body consisting of the cast iron hydraulic section and the wet rotor motor. Die-cast aluminium motor casing. Technopolymer impeller. Tempered stainless steel motor shaft on graphite bushings lubricated by the pumped liquid. Stainless steel rotor liner, stator liner and closing flange. Ceramic thrust ring, silicon seal rings, and brass air breather plug. The wet rotor asynchronous two-pole motor is protected as far as resistance, and does not require overload protection.

Three-speed operation.
Protection class: IP 44
Insulation class: F
Cable gland: PG 11
Installation: with horizontal motor axis.
Standard voltage: single-phase 230 V / 50 Hz
Special versions on request: - alternative voltages and/or frequencies

More Information
SKU 60185007H
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 3.0 Kg
Dimensions 150mm (h) x 104mm (d) x 124mm (w)
Motor Size (kW/W) 0.77kW
Full Load Current (FLC) 0.34A
Voltage 240V 1Ph 50Hz
Max Flow 3.7m³/h
Max Head 6m
Max Pressure 0.6 Bar
Max Temperature 85°C
Material Cast Iron
