DAB EsyTank 500 With EsyBox Mini3 - ESYTANK500MINI3

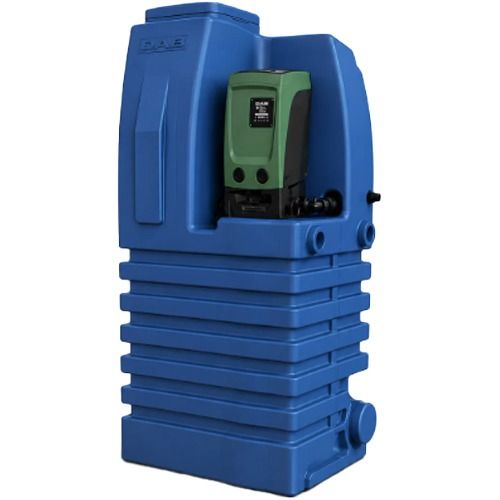

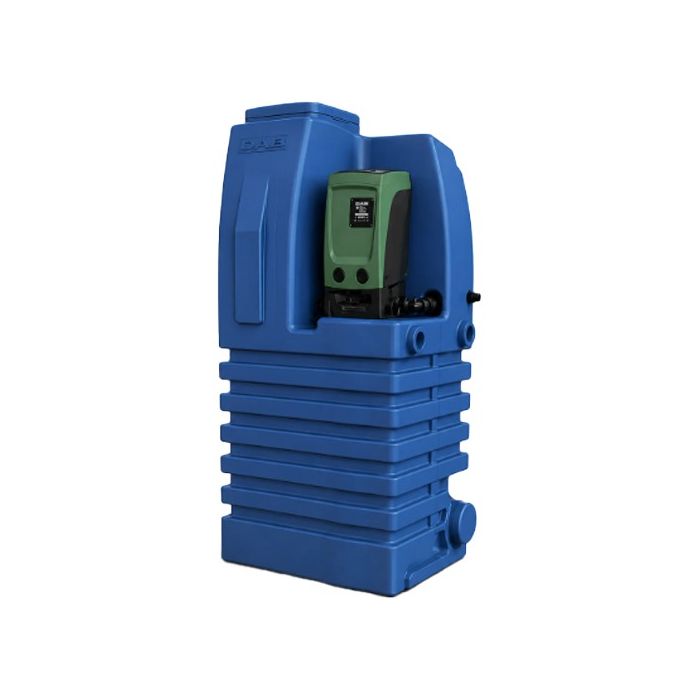

The DAB Esytank 500 with Esybox Mini3 is a complete pressure boosting system pairing the WRAS-approved Esybox Mini3 variable-speed pump with a 480-litre useable HDPE storage tank. Designed for domestic and light commercial properties where mains pressure is low or mains flow is restricted. Compact enough to fit through standard cellar doorways, with everything supplied for first-time installation.
Mains water fills the Esytank gradually through a float valve. The Esybox Mini3 then draws from the tank and delivers constant boosted pressure to every outlet on demand. The variable-speed inverter continuously adjusts to match real-time demand — DAB rate the energy saving at up to 50% compared with fixed-speed equivalents.
Supplied complete with Esydock, suction pipe with foot valve, delivery pipe, mains fill float valve, and overflow fitting. The Esybox Mini3 is WRAS approved for potable water; the Esytank is manufactured from food-grade HDPE. Backed by a 3-year DAB manufacturer warranty.
Features:
- complete system - esybox Mini3 pump, esytank 500 (480l useable), esydock, suction pipe, foot valve, delivery pipe and float valve all included

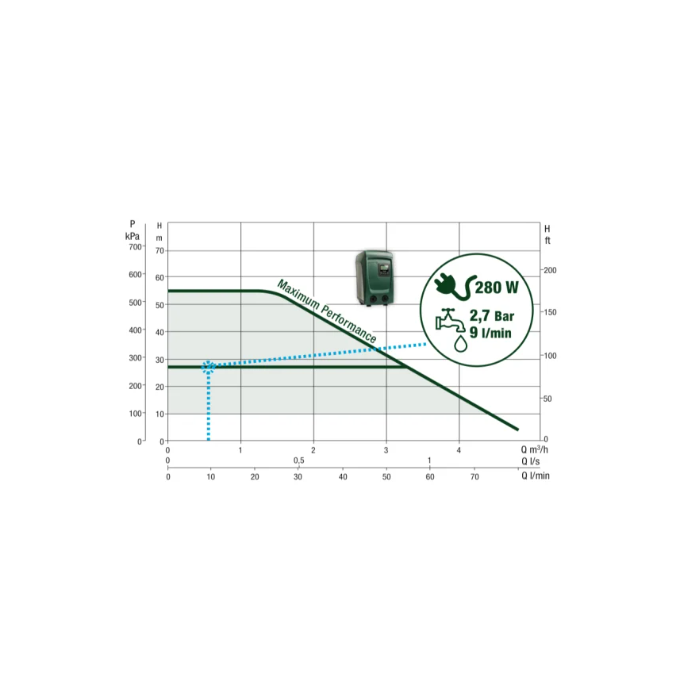

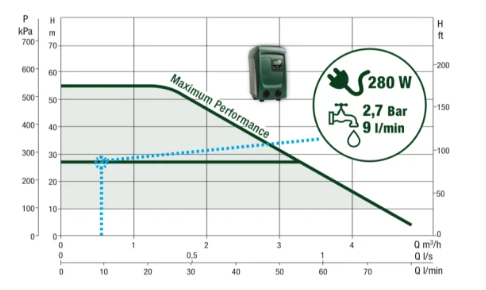

- up to 45 l/min at 3 bar - variable-speed inverter saves up to 50% energy vs fixed-speed alternatives
- esybox Mini3 is WRAS approved - certified for potable drinking water; tank manufactured from food-grade HDPE
- compact pump, ample storage - Mini3 is the smaller pump in the Esybox range, paired with 480 L of buffer capacity
- modular and expandable - auxiliary tanks couple on three sides; up to 4 Mini3 pumps can be linked for higher demand
- easy maintenance - accessible top inspection lid; pump docks and undocks without tools
- 3 year DAB manufacturers warranty
| SKU | ESYTANK500MINI3 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 3 Years |
| Weight | 35.0 Kg |

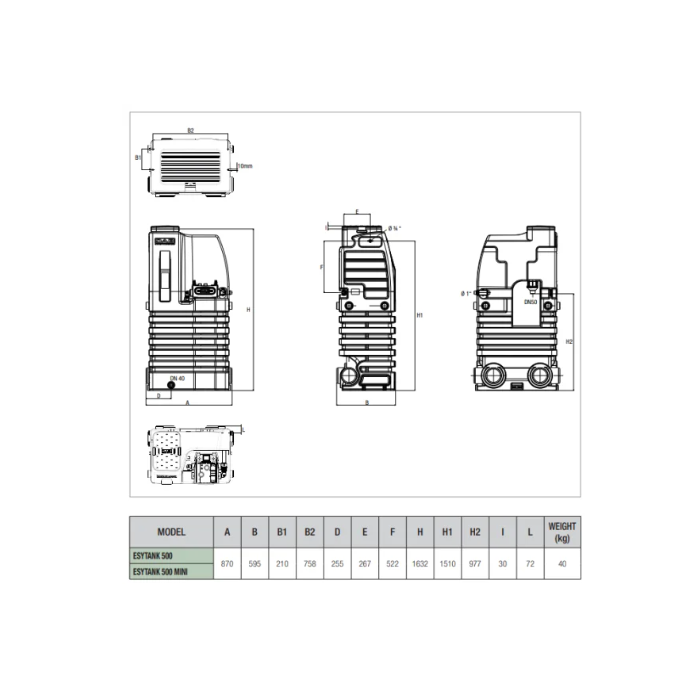

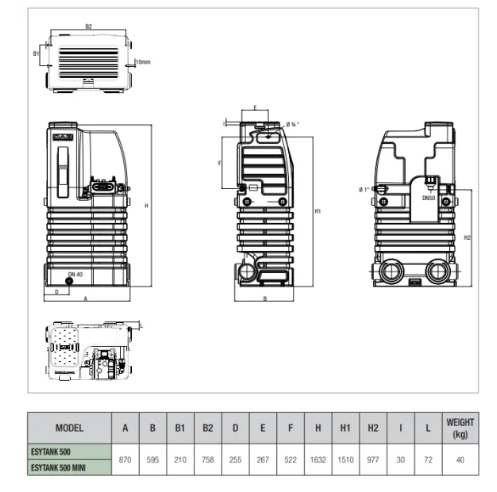

| Dimensions | 1632mm (h) x 870mm (w) x 595mm (d) |
| Connection Type | 1 Inch BSP Female |
| Motor Size (kW/W) | 850W |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 4.5m3/hr |
| Max Head | 55m |
| Max Pressure | 5.5 Bar |
| Max Temperature | 40°C |
| Material | HDPE |
