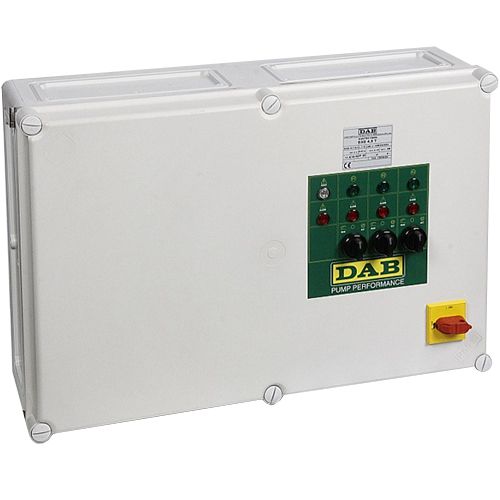

DAB E3D3M MY15 Control Panel for 3 Pumps
* Available where Guaranteed Stock Icon Appears Below
E3D0 9M MY15
Supplied on the box in self-extinguishing thermoplastic material and in metal model E3D22,5TSD, complete with brackets for wall mounting. The framework is self-protected and protects the pump from overload, short circuits with manual reset. The models E3D9M, E9D6MHS, from E3D12T to E3D90T SD can handle the signal over temperature protection if the pump is provided with it. The models E3D9MHS is provided with additional electrolytic condenser for high startup torque.
Complete with:
- Power line switch with pad lockable door handle (except in single-phase version)
- Self-protected transformer for the power supply of the external controls
- Exchange model for the alternation of starting pumps
- Terminals for connecting the electric pump and the float / pressure control switches
- Terminals without potential for controlling alarm and remote installation of an audible / visual alarm
- Button on the front panel for manual operation (single phase versions)
- Switch on the front panel for manual operation - 0 - Automatic
- Amperometric protection reports
- Pump running indicator
- Voltage indicator
- Limits of use ambient temperature: -10° C +40° C
- Degree of protection IP55
| SKU | 60170033 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 11.0 Kg |
| Dimensions | 540mm x 360mm x 200mm |
| Motor Size (kW/W) | 700W |
| Full Load Current (FLC) | 6A |
| Voltage | 240V 1Ph 50Hz |
| Cable Length | 1.5m |
| Max Temperature | 55°C |
| Material | Plastic |
| Manufactured In | Italy |
