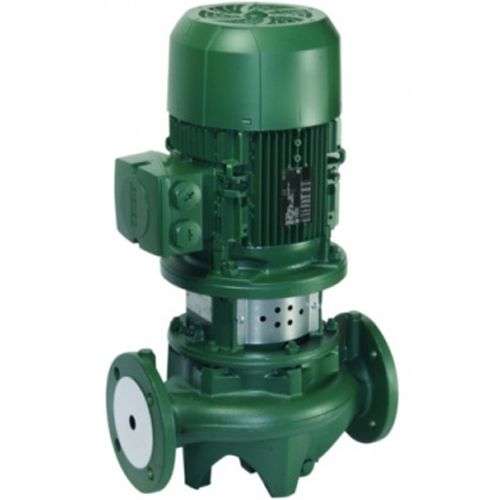

DAB CM 40-440 T-IE3 Single Head In-Line Circulator Pump 415v

SKU
60180063
MRRP £1,246.00 + VAT Our price £873.00 (+ VAT) Incl. VAT: £1,047.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
In-line port circulation pumps, suitable for heating, air conditioning, refrigeration and sanitary water systems.
Available in the single and twin versions.

CONSTRUCTION FEATURES
PN 10 - PN 16 flanged suction and delivery ports with threaded holes for control manometers. Cast iron pump body and motor support, cast iron or technopolymer impeller depending on mode. Stainless steel motor shaft. External ventilation three-phase asynchronous motor. For its protection we recommend the use of remote overload cut-outs, in compliance with current local regulations.

More Information
SKU 60180063
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 41.0 Kg
Dimensions 453mm (h) x 390mm (w) x 231mm (d)
Connection Type 40mm Flanged
Motor Size (kW/W) 0.75kW
Full Load Current (FLC) 1A
Voltage 415V 3Ph 50Hz
RPM 1480rpm
Max Flow 12m3/hr
Max Head 4m
Max Pressure 0.4 Bar
Max Temperature 130°C
Material Cast Iron
