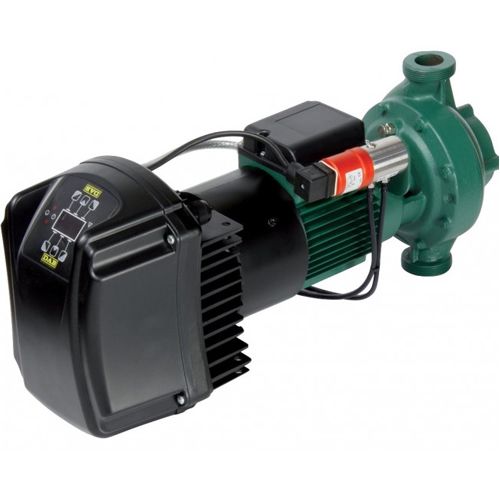

DAB ALME 500 M MCE11/C In-Line Pump 240v

SKU
60143227
MRRP £3,582.00 + VAT Our price £2,508.00 (+ VAT) Incl. VAT: £3,009.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

APPLICATIONS
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of on civil and industrial heating, air conditioning, refrigeration, and sanitary water plants. Particularly versatile thanks to the use of the MCE/C inverter, offering performance features capable of automatically adapting to the different needs of the system, keeping a consistent differential pressure.

CONSTRUCTION FEATURES OF THE PUMP
Pump body and motor support in cast iron. 2" M-GAS suction and delivery ports. Technopolymer impeller. Carbon/ceramic mechanical seal. Construction features of the motor: external ventilation cooling, closed, asynchronous type, with four poles for the ALM version, and two poles for the ALP version. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Construction according to CEI 2-3.

CONSTRUCTION FEATURES OF THE ELECTRONICS: MCE/C INVERTER
MCE/C inverters are the latest technological achievement of the DAB inverter range. They represent a new generation of inverters for use with circulation pumps, and set themselves apart due to ease of use, power, simplicity of installation and management. MCE/C inverters have been designed for managing circulation pumps. By allowing a simple adjustment of the differential pressure, they give the possibility of adjusting the performance of the circulation pump to the actual system requirements. They are fitted on the fan cover of the motor. This makes the installation of the pump with MCE/C particularly easy and quick. The protection class of the MCE/C is IP55. The easy of programming is guaranteed by the use of a simple and intuitive interface, similar to Dialogue electronic circulators, and a graphic display. MCE/C inverters have a double micro-processor construction that guarantees maximum efficiency and reliability. A reliable and sturdy construction, together with a modern and innovative design, complete the product, also in terms of aesthetic value. MCE/C inverters protect the motor and the pump, and increase their life, by eliminating hammering effects and making the pump rotate at the minimum number of rotations capable of meeting the requirements of the user. In addition, electric pumps controlled by the MCE/C inverter are environmentally friendly. In fact, by ensuring that the pump only uses the power that is strictly necessary for meeting the needs of the users, electricity consumption is strongly reduced when compared with fixed speed pumps. It is possible to create twin units by using the appropriate cable for the connection of MCE/C inverters.

More Information
SKU 60143227
Manufacturer DAB
Manufacturers Warranty 2 Years
Weight 20.0 Kg
Dimensions 586mm (w) x 250mm (h) x 200mm (d)
Motor Size (kW/W) 0.25kW
Full Load Current (FLC) 3.20A
Voltage 240V 1Ph 50Hz
RPM 1425rpm
Max Flow 7m3/hr
Max Head 5.5m
Max Pressure 10 bar
Max Temperature 120°C
Material Cast Iron
