CIM 200 Modbus Interface Module For Magna3 Range

SKU
96824796
MRRP £337.00 + VAT Our price £307.00 (+ VAT) Incl. VAT: £368.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Communication interface for Modbus for automation.

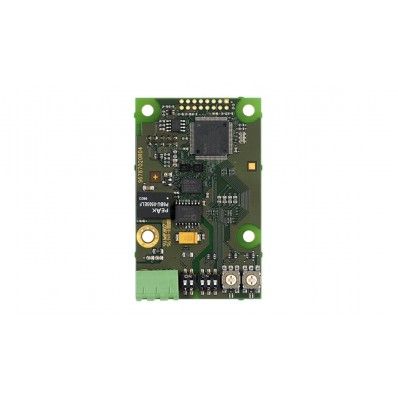

The CIM 200 is a standard interface for data transmission between a Modbus RTU network and a Grundfos pump. It makes data exchange possible between Grundfos pump and a PLC or SCADA system. Extensive amounts of datapoints are available from each product via the CIM 200. The interface offers uncomplicated system integration with both new and legacy systems, as the Modbus RTU protocol is widely supported by existing control systems and PLCs.

The CIM 200 is an add-on communication module installed internally in the Grundfos product.

Supported products:

  • E-pump types up to 2.2 kW and E-pump types at or above 11 kW
  • MAGNA3 circulators
  • CU 352 MPC controller
  • CU 354 DDD controller
  • CU 362 Dedicated Controls for sewage pumps
More Information
SKU 96824796
Manufacturer Anchor
Manufacturers Warranty 1 Year
Weight 2.0 Kg
Material Plastic
