Calpeda TP 100/A Peripheral Booster Pump 415V

SKU
TP100A
MRRP £933.00 + VAT Our price £607.00 (+ VAT) Incl. VAT: £728.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

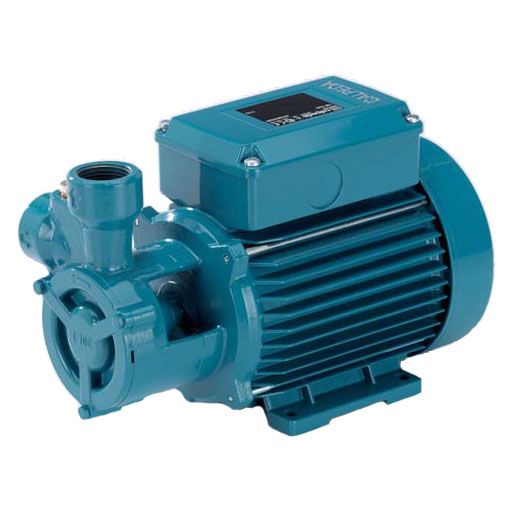

Calpeda TP 100/A Peripheral Booster Pump 415V - TP100A

Calpeda T close-coupled peripheral pumps (regenerative) with turbine impellers.

T/TP: version with pump casing and lantern bracket in cast iron.

B-T/B-TP: version with pump casing and lantern bracket in bronze.



Suitable for pumping clean liquids without abrasives, without suspended solids,non-explosive, non-aggressive for the pump materials and increasing network pressure.

These pumps are well suited to being mounted in cooling and air-conditioning machines and equipment and for circulation and boiler feed.



Operating conditions:

  • Liquid temperature -10°C to +90°C
  • Ambient temperature up to 40°C
  • Total suction lift up to 7m
  • 3/4" Suction and Discharge Ports (screwed connection)
  • Suitable for continuous duty
More Information
SKU TP100A
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 23.2 Kg
Dimensions 180mm High x 155mm Wide x 387mm Deep
Motor Size (kW/W) 2.2 kW
Voltage 415V 3Ph 50Hz
Max Flow 2.4 m3/hr
Max Head 160m
Material Cast Iron
