Calpeda NR 32/160B/A Inline Centrifugal Pump 415v

SKU
70MA0111000
MRRP £735.00 + VAT Our price £478.00 (+ VAT) Incl. VAT: £573.60
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

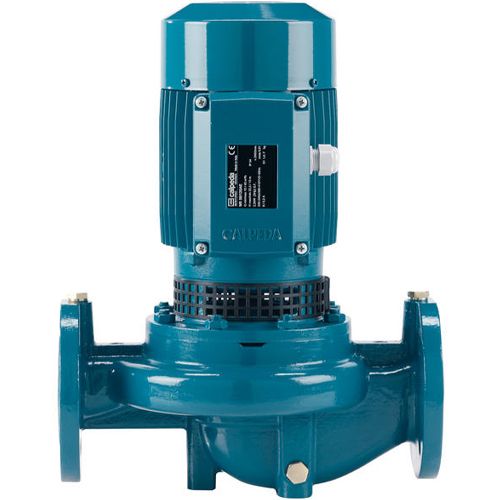

Calpeda NR 32/160B/A Inline Centrifugal Pump 415v - 70MA0111000

Construction
Close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NR, NR4: Single head pump.
NRD: Twin head pump with bulit-in automatic switching valve. The two head can operate singularly or in parallel.
Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line).
Connections: Flanges PN 10, EN 1092-2.
Counterflanges(on request):
NR,NR4 32,40,50,65 : Screwed flanges PN 16, EN 1092-1.
NR4 100, NR4 125 : Flanges for welding PN 10, EN 1092-1.
Version with frequency converter (on request)

Applications
- For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
- For heating, conditioning, cooling and circulation plants.
- For civil and industrial applications.
- When low noise operation is required (n = 1450 rpm).

More Information
SKU 70MA0111000
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 27.0 Kg
Inlet Dimension DN 32
Discharge Dimension DN 32
Voltage 415V 3Ph 50Hz
RPM 2900
Max Flow 10.80m³/h
Max Head 27.90m
Max Pressure 10 bar
Max Temperature 90°C
Material Cast Iron
Impeller Material Brass
Manufactured In Italy
