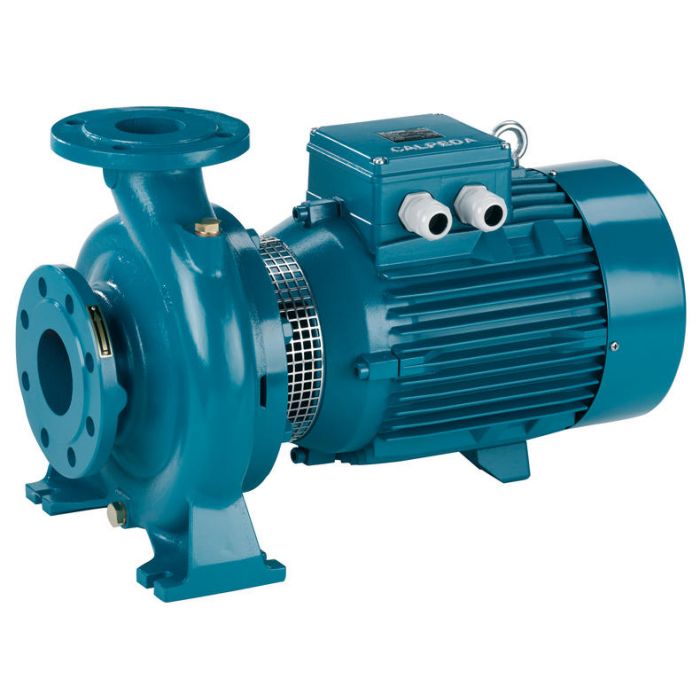

Calpeda NM4 4 Pole flanged end suction close-coupled centrifugal pumps have an electric motor with extended shaft directly connected to the pump. Pump casing with axial suction and radial delivery on top.
These pumps are suitable for the following applications:
- Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
- Mains water supply
- Heating, air conditioning, cooling and circulation
- Civil and industrial applications
- Fire fighting applications
- When low noise operating is required
PUMP SUPPLIED WITH FREE UK MAINLAND DELIVERY.
|Manufacturers Warranty||1 Year|

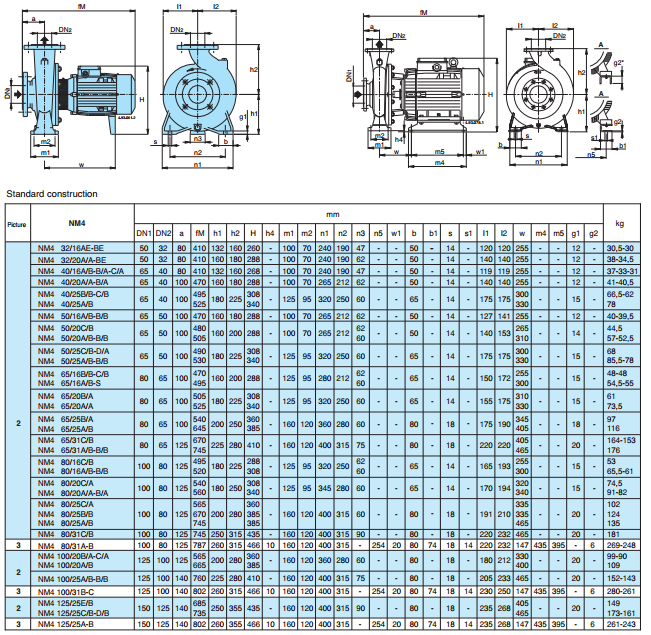

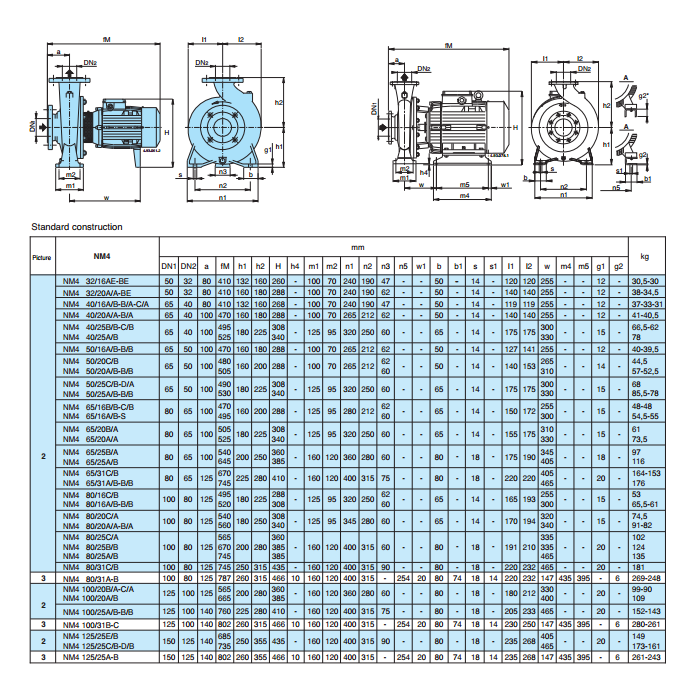

|Dimensions||565mm (d) x 480mm (h) x 400mm (w)|
|Inlet Dimension||100mm Flanged|
|Discharge Dimension||80mm Flanged|
|Motor Size (kW/W)||5.5 kW|
|Full Load Current (FLC)||12.5A|
|Voltage||415V 3Ph 50Hz|
