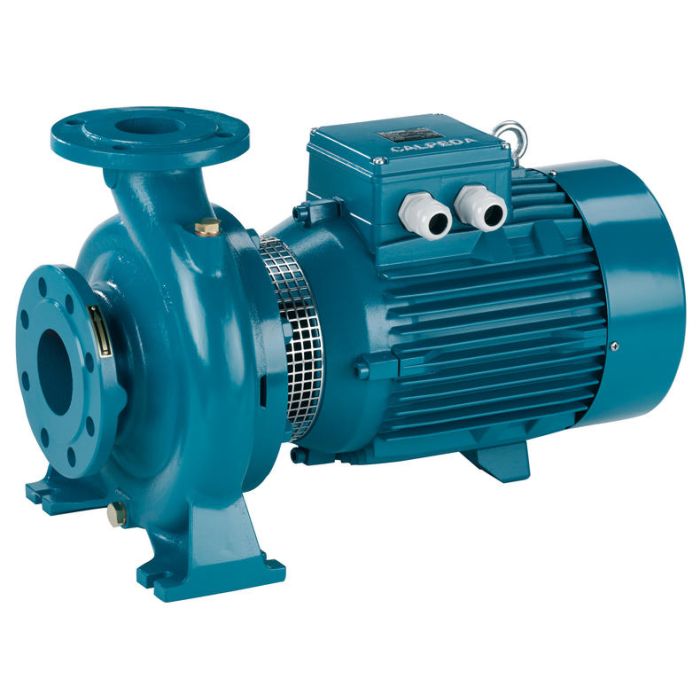

Calpeda NM4 65/31A/B 4 Pole Flanged End Suction Pump 415V

MRRP £4,292.00 + VAT Our price £3,004.00 (+ VAT) Incl. VAT: £3,604.80
Order within
for next day delivery i

Calpeda NM4 4 Pole flanged end suction close-coupled centrifugal pumps have an electric motor with extended shaft directly connected to the pump. Pump casing with axial suction and radial delivery on top.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • When low noise operating is required
  • Irrigation


More Information
SKU NM4-65-31AB
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 176.0 Kg
Dimensions 670mm x 505mm x 400mm
Motor Size (kW/W) 9.2 kW
Voltage 415V 3Ph 50Hz
Max Flow 1000 l/min
Max Head 35.9m
Material Cast Iron
