Calpeda NM 80/16D/B Flanged End Suction Pump 415V

MRRP £2,493.00 + VAT Our price £1,746.00 (+ VAT) Incl. VAT: £2,095.20
Order within
for next day delivery i

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation


More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 108.0 Kg

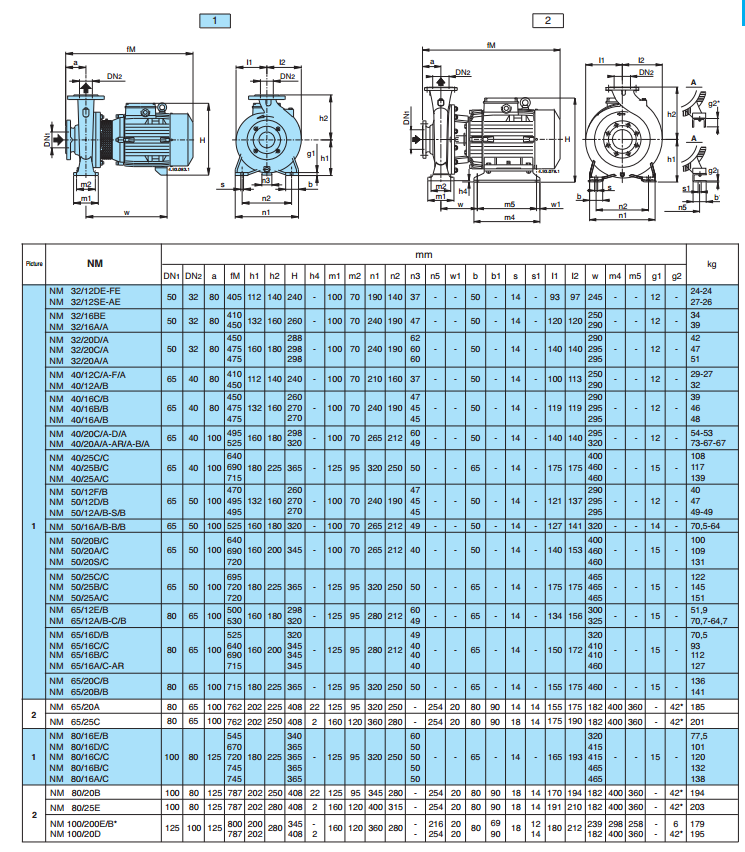

Dimensions 545mm x 405mm x 320mm
Motor Size (kW/W) 9.2 kW
Voltage 415V 3Ph 50Hz

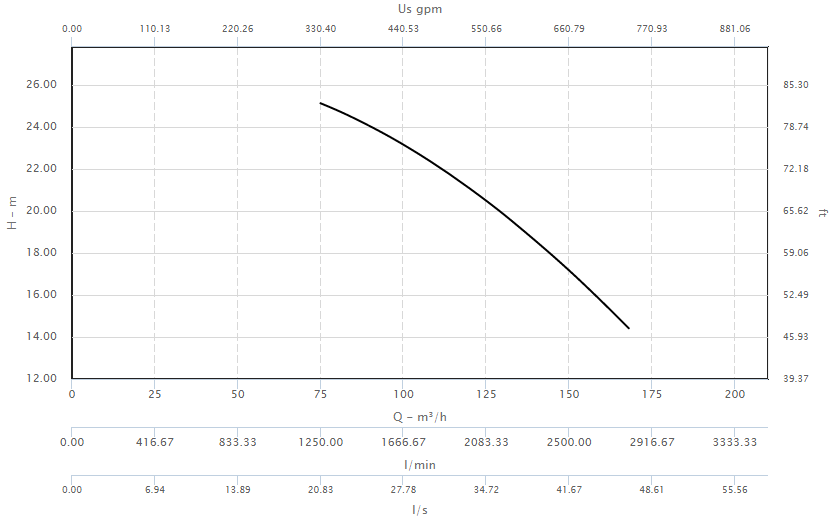

Max Flow 1600 l/min
Max Head 23m
Material Cast Iron
