Calpeda NM 50/25B/C Flanged End Suction Pump 415V

SKU
NM50-25BC
MRRP £3,456.00 + VAT Our price £2,247.00 (+ VAT) Incl. VAT: £2,696.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

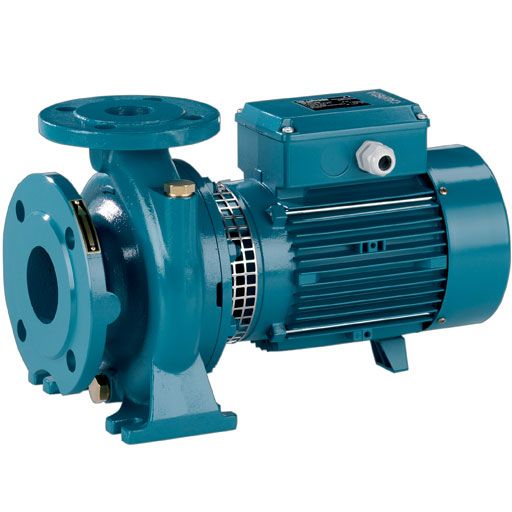

Calpeda NM 50/25B/B Flanged close coupled end suction centrifugal pump with 15.0kW (20.0HP) 415V 3Ph 50Hz Motor - NM50-25BC

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NM50-25BC
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 132.0 Kg

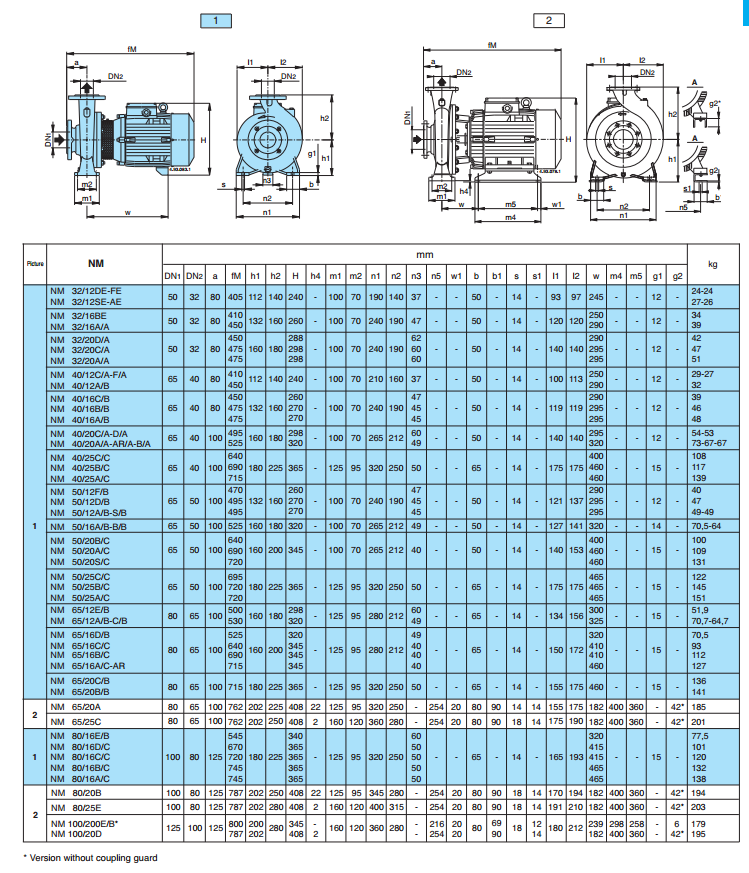

Dimensions 695mm (d) x 405mm (h) x 320mm (w)
Inlet Dimension 65mm Flanged
Discharge Dimension 50mm Flanged
Motor Size (kW/W) 15.0 kW
Full Load Current (FLC) 27.3A
Voltage 415V 3Ph 50Hz

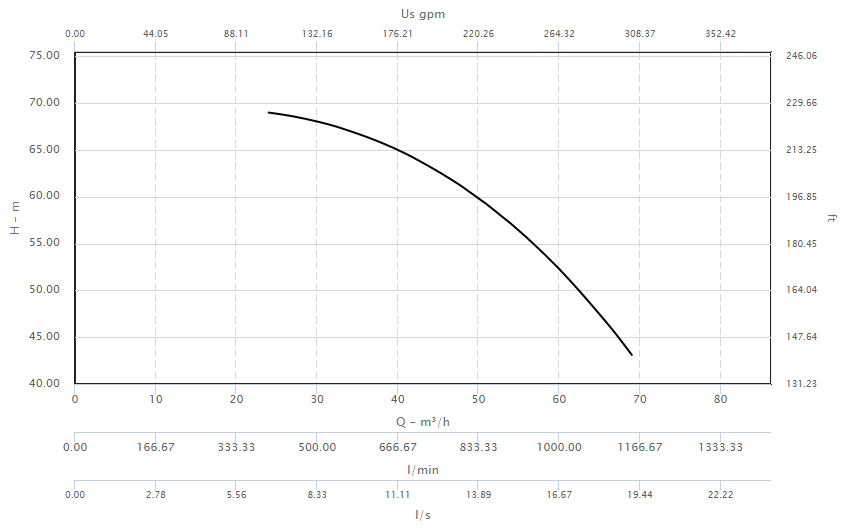

Max Flow 69m3/hr
Max Head 69m
Max Temperature 90°C
Material Cast Iron
