Calpeda NM 40/20B/A Flanged End Suction Pump 415V

SKU
NM40-20BA
MRRP £1,917.00 + VAT Our price £1,247.00 (+ VAT) Incl. VAT: £1,496.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

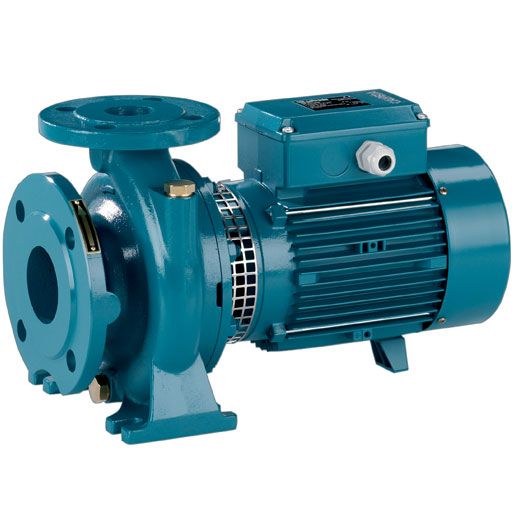

Calpeda NM 40/20B/A Flanged close coupled end suction centrifugal pump with 5.5kw (7.5HP) 415V 3Ph 50Hz Motor - NM40-20BA

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NM40-20BA
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 65.0 Kg
Dimensions 525mm (d) x 340mm (h) x 265mm (w)
Inlet Dimension 65mm Flanged
Discharge Dimension 40mm Flanged
Motor Size (kW/W) 5.5 kW
Voltage 415V 3Ph 50Hz
Max Flow 37.8m3/hr
Max Head 50m
Max Temperature 90°C
Material Cast Iron
