Calpeda MXHM 802/A Horizontal Multi-Stage Booster Pump 240V

MRRP £696.00 + VAT Our price £488.00 (+ VAT) Incl. VAT: £585.60
Order within
for next day delivery i

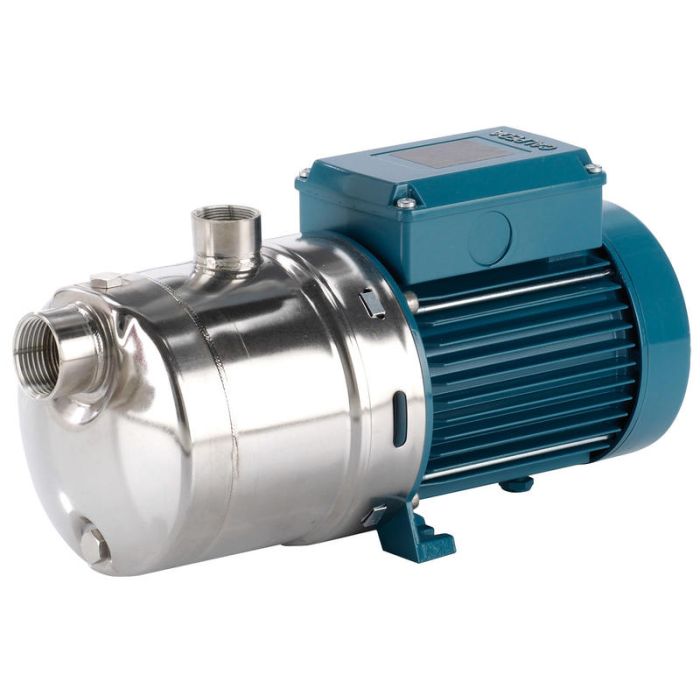

The Calpeda MXHM 802/A 240V 1Ph 50Hz is a horizontal multi-stage close coupled pump which has a compact and robust construction, without protruding flange and with single-piece lantern bracket and base.



  • Water supply
  • Non-abrasive clean liquids that are non-aggressive
  • Stainless steel (with suitable seal materials, on request)
  • Domestic use
  • Civil and industrial applications
  • Garden use and irrigation
More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 11.6 Kg

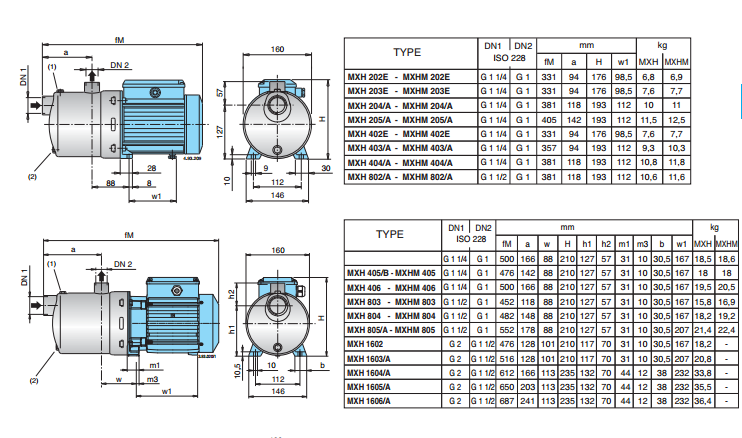

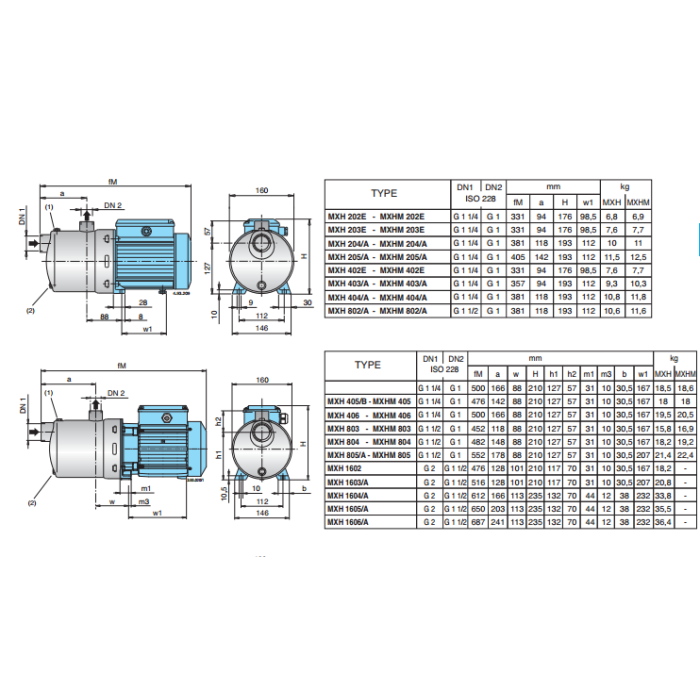

Dimensions 381mm Deep x 193mm High x 146mm Wide
Motor Size (kW/W) 0.75 kW
Voltage 240V 1Ph 50Hz

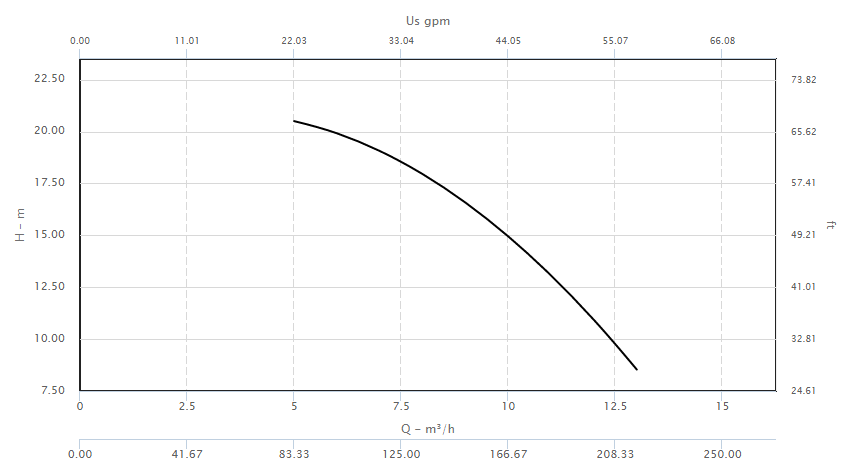

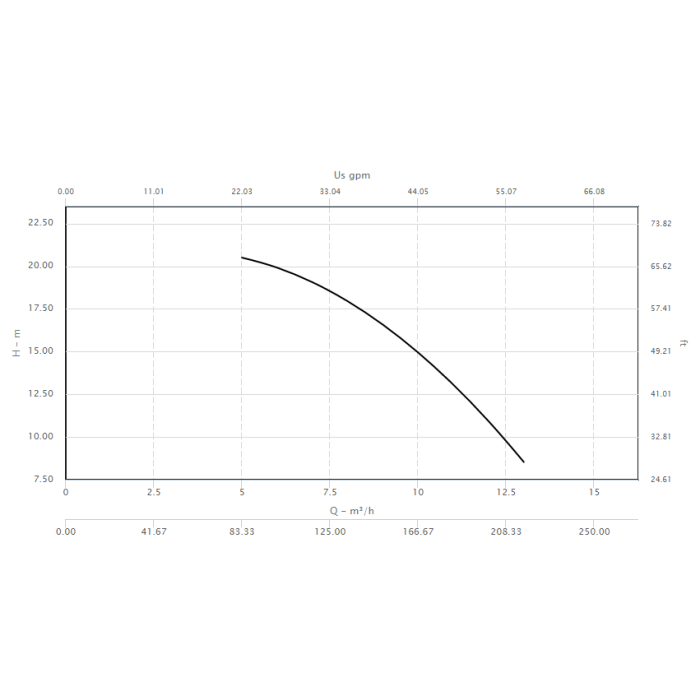

Max Flow 13 m3/hr
Max Head 22.5m
Material Stainless Steel


We offer free standard delivery to any UK address on a 3-5 working day delivery time on all orders over the value of £60 + vat. This is not weight restricted

Next day delivery is charged at £12.50 + vat for items under 35kgs.  Orders need to be placed before 5pm Mon-Thurs or 4:30 on Friday for guaranteed Next Day Delivery.

Next day delivery is not avaialble for UK Highlands and Islands. Please click the following link to view postcodes/areas that don't qualify for next day delivery.


Due to some product specifications, there may be a lead time of up to 4 weeks. This is only on a small number of products and you will be contacted upon purchase and entitled to a full refund if required.

For Items over 35kgs, please review our delivery charges here

For full delivery terms please click here

International Delivery

Please click here to view International delivery rates.

If you want your order delivered to a remote area please contact our one of our Sales Representatives on 0800 112 3134 before placing your order and we will assist you further.


Unused, unaltered items may be returned at the buyers expense for credit upon Anchor Pumps prior written consent and upon the terms specified by Anchor Pumps.  The buyer assumes all risk of loss of such returned goods until actual receipt and acceptance by Anchor Pumps.  Please click here to view Returns information.
