Calpeda MXH206/A. AGAP 80 Auto Pump Set 240V

MRRP £2,349.00 + VAT Our price £1,527.00 (+ VAT) Incl. VAT: £1,832.40
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda MXH206/A. AGAP 80 Auto Pump Set 240V - MXH206/A-AGAP-80

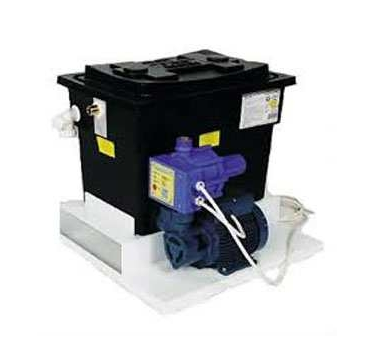

Calpeda AGAP and MEDIGAP automatic pump sets consist of a bronze or stainless steel pump with automatic control system on a mild steel base with a cold water storage cistern (18 - 80L).

The units are designed to prevent backflow of possible contaminated water into the mains water system, whilst maintaining a pressurised cold water supply to the equipment.

The Calpeda AGAP and MEDIGAP automatic pump system with cistern is designed to meet the requirements of the water supply (water fittings) regulations 1999 in respect of a type AB air gap at the point of use or discharge of ‘quality non-domestic water”

The Medigap has been technically designed to feed water to up to three dentist chairs. The system incorporates a type AB air gap conforming to the above stated legislation and to date has been accepted by all water inspectors who have been involved with the unit and its installation.  The MEDIGAP set is for use with non-domestic quality water, to prevent backflow contamination of mains water supply whilst maintaining flow and pressure. Specifically designed for use in conjunction with dentist chairs.



More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 75.0 Kg

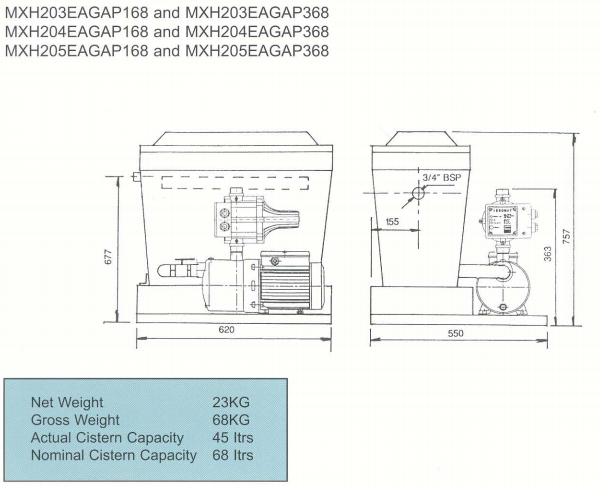

Dimensions 620mm x 550mm x 757mm
Motor Size (kW/W) 0.75 kW
Voltage 240V 1Ph 50Hz

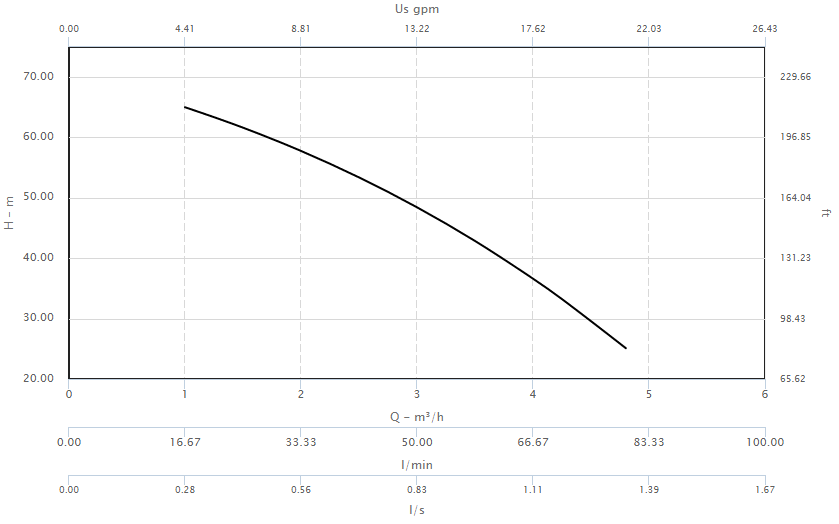

Max Flow 4.75 m3/hour
Max Head 68.5m
Material Stainless Steel
