Calpeda MXH 803 Horizontal Multi-Stage Booster Pump 415V

MRRP £1,070.00 + VAT Our price £696.00 (+ VAT) Incl. VAT: £835.20
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda MXH 803 Horizontal Multi-Stage Booster Pump 415V - MXH-803

The Calpeda MXH 803 415V 3Ph 50Hz is a horizontal multi-stage close coupled pump which has a compact and robust construction, without protruding flange and with single-piece lantern bracket and base.



  • Water supply
  • Non-abrasive clean liquids that are non-aggressive
  • Stainless steel (with suitable seal materials, on request)
  • Domestic use
  • Civil and industrial applications
  • Garden use and irrigation
More Information
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 15.8 Kg

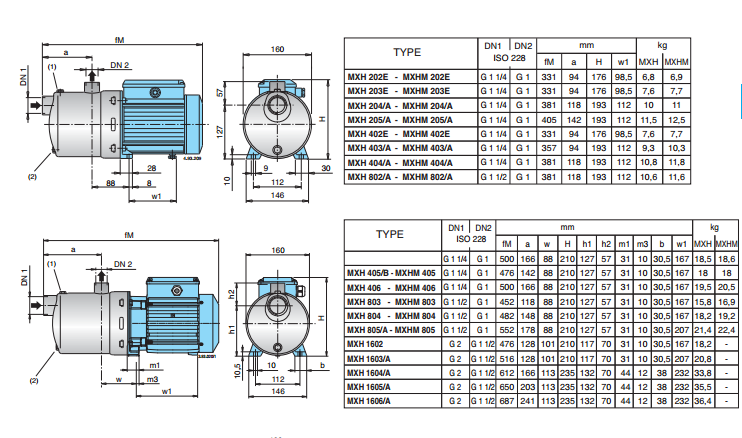

Dimensions 452mm Deep x 210mm High x 146mm Wide
Motor Size (kW/W) 1.1 kW
Voltage 415V 3Ph 50Hz
Max Flow 13 m3/hr
Max Head 36m
Material Stainless Steel
