Calpeda GXVm 25-8-SG Submersible Dirty Water Pump without Floatswitch 110V

SKU
GXVm25-8-SG-110
MRRP £531.00 + VAT Our price £372.00 (+ VAT) Incl. VAT: £446.40
Order within
Hours
Mins
Secs
for next day delivery i

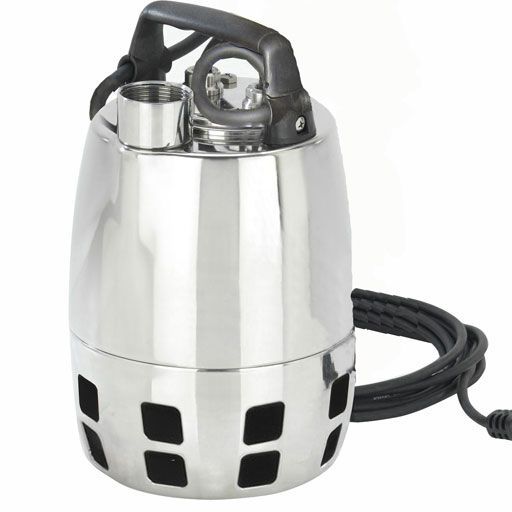

Calpeda GXVm 25-8-SG Submersible Stainless Steel dirty water drainage pump (25mm solids handling) without floatswitch, 10m cable and 0.37kW 110V 1Ph 50Hz motor.

Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:

GXR:

  • For clean water containing solids up to 10mm diameter.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.
  • For irrigation purposes.

GXV:

  • For clean or slightly dirty water, containing solids up to 25 mm grain size.
  • Particularly suitable for liquidor with filamentous particles.

 For outdoor use a power supply cable of not less than 10m should be used.



Construction Details:

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXR: with open impeller.
  • GXV(25): with free-flow (vortex) impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Handle in polypropylene.
  • Double shaft seal with oil chamber.
  • Certain models have a float switch for automatic start/stop.

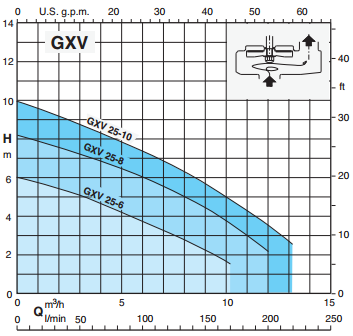

  • Head up to 12.7m and flow rates up to 220 litres/min.
  • 1 1/4" BSP Female Discharge Port.
More Information
SKU GXVm25-8-SG-110
Weight 6.6 Kg

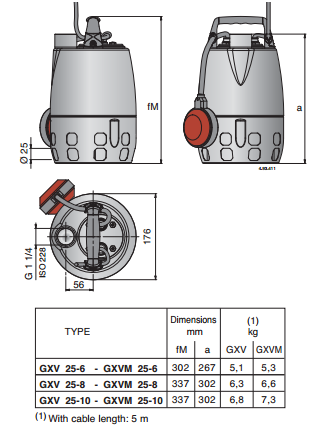

Dimensions 337mm High x 176mm Diameter
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Material Stainless Steel
Connection Type 1 1/4 Inch BSP Female
Voltage 110V 1Ph 50Hz
Max Flow 12m3/hr
Max Head 8.2m
Full Load Current (FLC) 3.5A
Cable Length 5 Metres
Float Switch Yes
