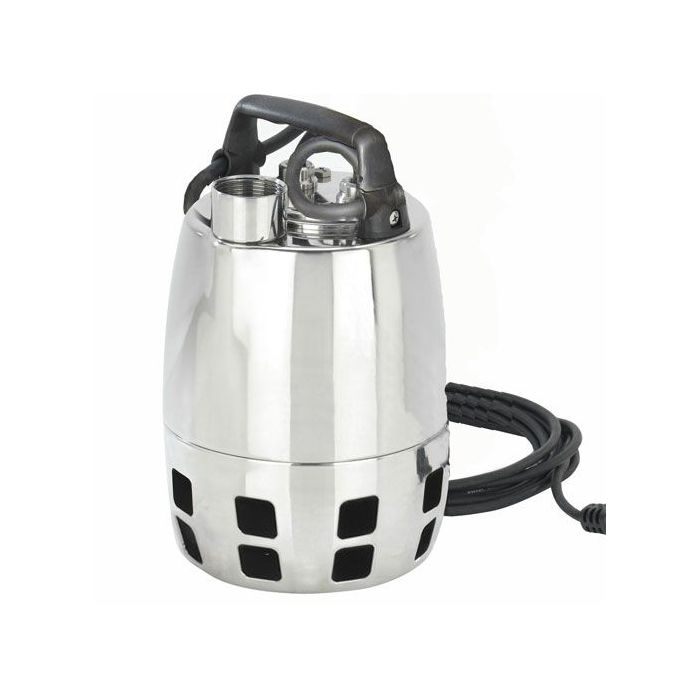

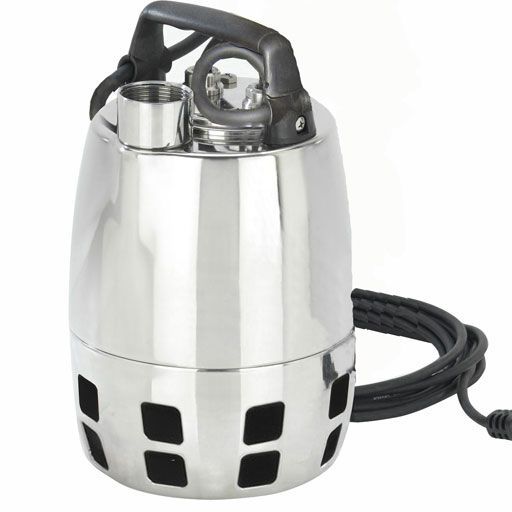

Calpeda GXV 25-6-SG Submersible Stainless Steel dirty water drainage pump (25mm solids handling) without floatswitch, 10m cable and 0.25kW 415V 3Ph 50Hz motor.
Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.
For outdoor use a power supply cable of not less than 10m should be used.
- Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
- GXR: with open impeller.
- GXV(25): with free-flow (vortex) impeller.
- Motor cooled by the pumped water passing between the motor jacket and the external jacket.
- Handle in polypropylene.
- Double shaft seal with oil chamber.
- Certain models have a float switch for automatic start/stop.

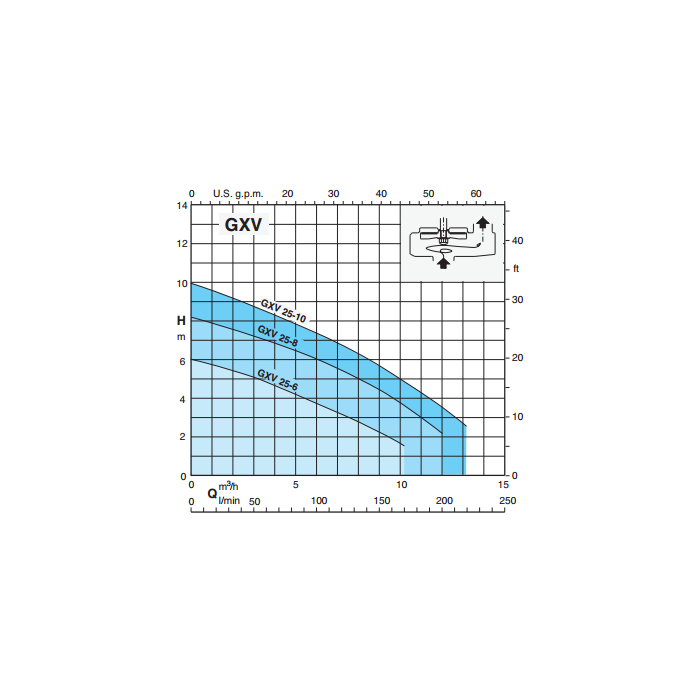

- Head up to 12.7m and flow rates up to 220 litres/min.
- 1 1/4" BSP Female Discharge Port.

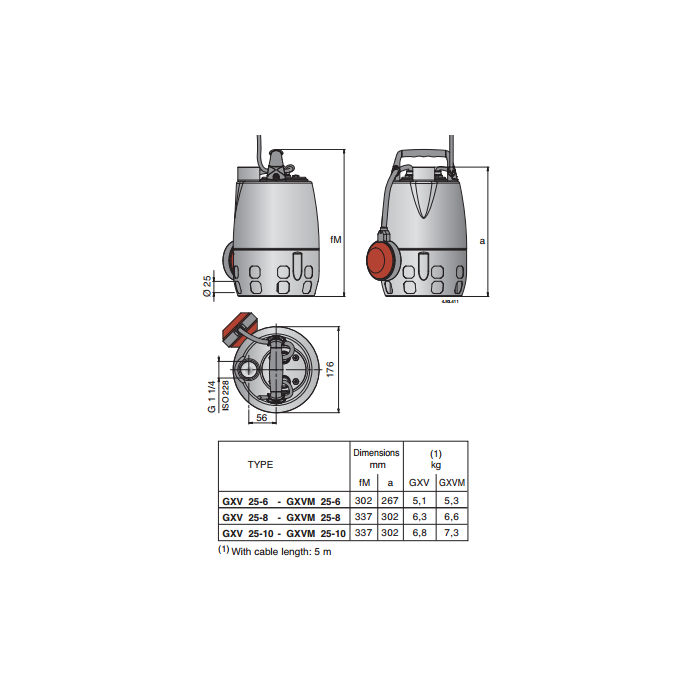

|Dimensions||302mm High x 176mm Diameter|
|Manufacturers Warranty||1 Year|
|Connection Type||1 1/4 Inch BSP Female|
|Voltage||415V 3Ph 50Hz|
|Full Load Current (FLC)||0.9A|
|Cable Length||5 Metres|
