Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.
For outdoor use a power supply cable of not less than 10m should be used.
- Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
- GXR: with open impeller.
- GXV(25): with free-flow (vortex) impeller
- Motor cooled by the pumped water passing between the motor jacket and the external jacket.
- Handle in polypropylene.
- Double shaft seal with oil chamber.
- Certain models have a float switch for automatic start/stop.

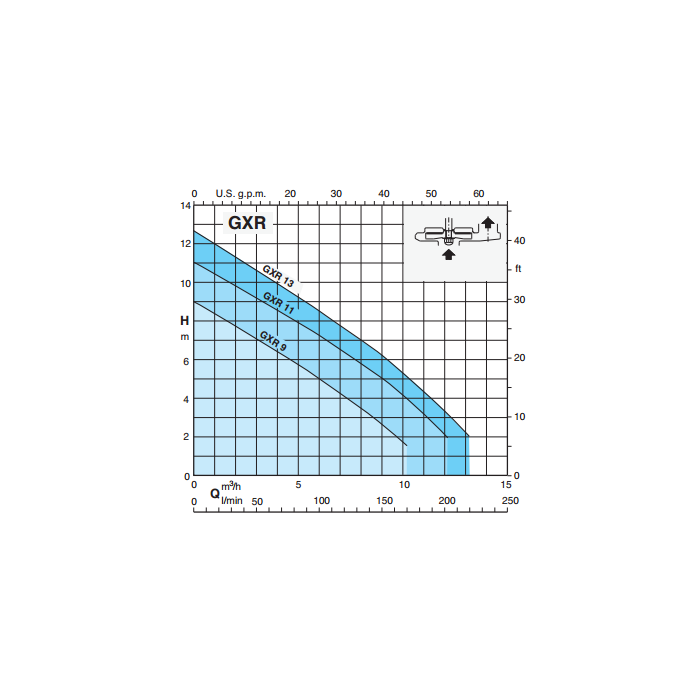

- Head up to 12.7m and flow rates up to 220 litres/min.
- 1 1/4" BSP Female discharge port.

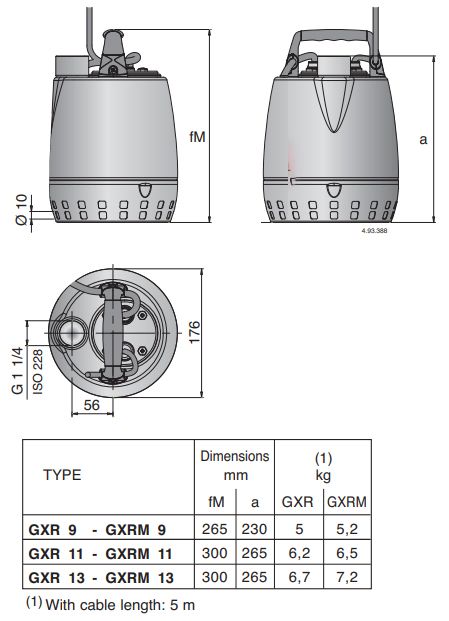

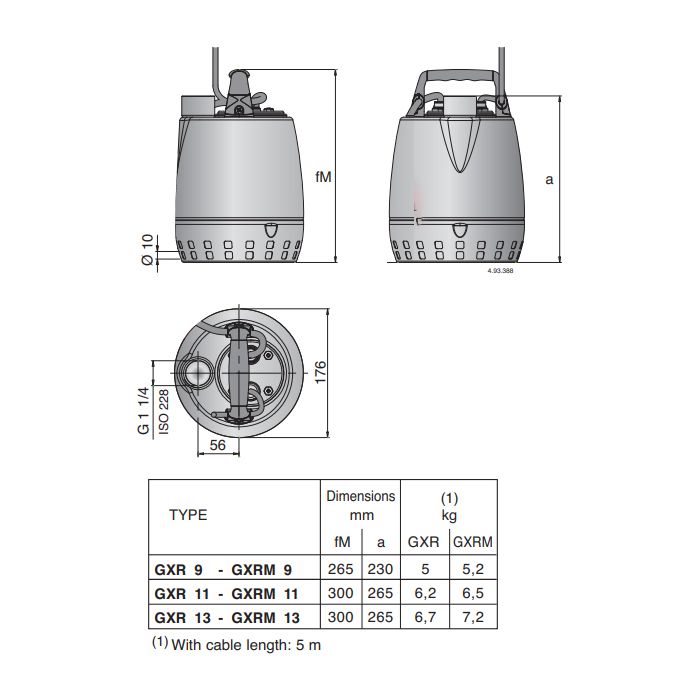

|Dimensions||300mm High x 176mm Diameter|
|Manufacturers Warranty||1 Year|
|Connection Type||1 1/4 Inch BSP Female|
|Voltage||110V 1Ph 50Hz|
|Full Load Current (FLC)||3.5A|
|Cable Length||5 Metres|
