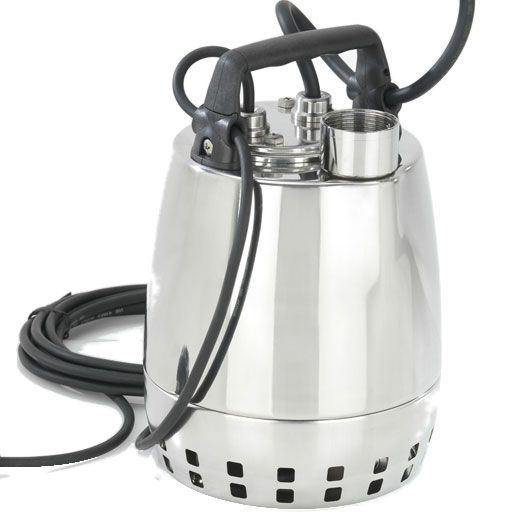

Calpeda GXR 9-SG Submersible Dirty Water Pump without Floatswitch 415V

SKU
GXR9-SG
MRRP £273.00 + VAT Our price £191.00 (+ VAT) Incl. VAT: £229.20
Order within
Hours
Mins
Secs
for next day delivery i

Calpeda GXR 9-SG Submersible Stainless Steel dirty water drainage pump (without floatswitch), with 5m cable and 0.25kW 415V 3Ph 50Hz motor.

Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:

GXR:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.

GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.


For outdoor use a power supply cable of not less than 10m should be used.

Construction Details:

  • Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
  • GXR: with open impeller.
  • GXV(25): with free-flow (vortex) impeller.
  • Motor cooled by the pumped water passing between the motor jacket and the external jacket.
  • Handle in polypropylene.
  • Double shaft seal with oil chamber.
  • Certain models have a float switch for automatic start/stop.
  • Head up to 12.7m and flow rates up to 220 litres/min.
  • 1 1/4" BSP female discharge port.
More Information
SKU GXR9-SG
Weight 5.2 Kg

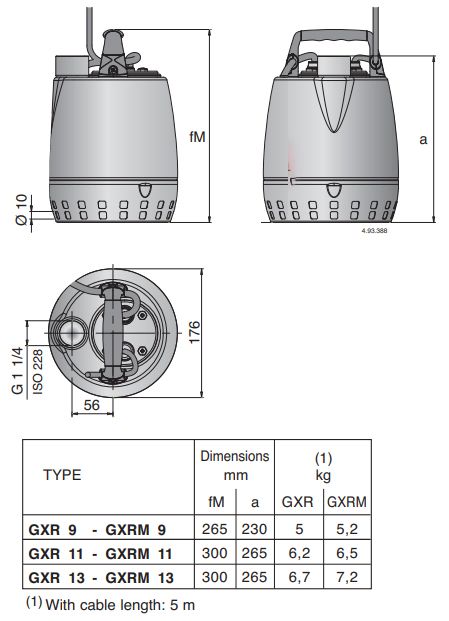

Dimensions 265mm High x 176mm Diameter
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Material Stainless Steel
Connection Type 1 1/4 Inch BSP Female
Voltage 415V 3Ph 50Hz
Max Flow 10.2m3/hr
Max Head 9m
Full Load Current (FLC) 0.9A
Cable Length 5 Metres
