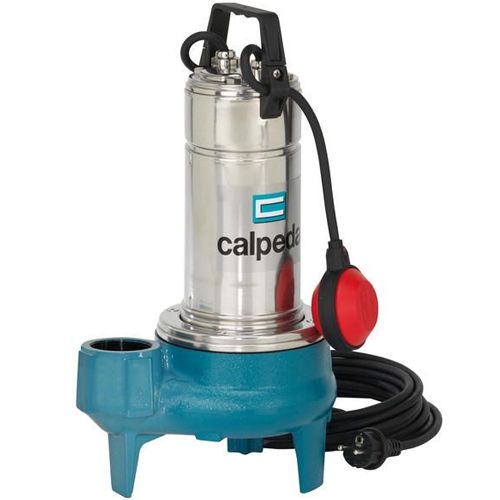

Calpeda GQSM 50-13 Submersible Vortex Pump With Float 240v

SKU
70U91200000
MRRP £794.00 + VAT Our price £517.00 (+ VAT) Incl. VAT: £620.40
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda GQSM 50-13 Submersible Vortex Pump With Float 240v - 70U91200000

The Calpeda GQS and GQV is a range of submersible pumps that contain a free flow vortex impeller.

This three phase model has been designed to be installed for domestic use for applications of 10m head maximum and has a verticle outlet port.

However both the GQS and GQV models have a double mechanical shaft seal with an interposed oil chamber which helps to protect against dry-running.

The GQS Range have been designed to pump waste water, dirty water with solids up to a grain size of 50mm and for liquids which are compatible with pump stations for domestic and industrial sites.

As well as this, GQS pumps can also be used to drain rooms, emptying tanks and for the extraction of water from ponds, streams and pits for the application of rainwater collection.

Construction

  • Single-impeller submersible pumps,
  • Free-flow (vortex) impeller
  • Vertical threaded delivery port (G 2”).
  • Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.



Applications

  • For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials.
  • For draining rooms or or emptying tanks.
  • Extraction of water from ponds, streams or pits and for rainwater collection.







More Information
SKU 70U91200000
Weight 20.3 Kg
Dimensions 505 x 264 x 183 mm
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Material Cast Iron
Connection Type 2 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 600 l/min
Max Head 13 Metres
Full Load Current (FLC) 1.1 kW
Cable Length 10 Metres
Float Switch Yes
