Calpeda GEO40-GXRM11-GF Submersible Pump Lifting Station (Automatic) 240V

MRRP £1,082.00 + VAT Our price £704.00 (+ VAT) Incl. VAT: £844.80
Order within
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda GEO40-GXRM11-GF Submersible Pump Lifting Station (Automatic) 240V - GEO40-GXRM11-GF

The GEO range of lifting stations are suitable for:

  • Automatic waste water collecting and lifting stations, to handle domestic, civil and industrial waste water
  • For collecting and lifting clean waste water and rain water
  • For flood drainage

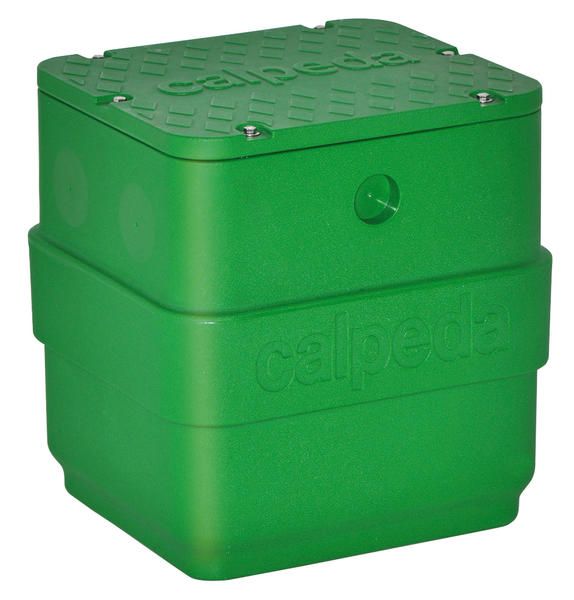

The GEO40 single tank with 40 litre nominal capacity comes with the GXRM9, 11 or 13 submersible pump depending on application.



  • Automatic collecting and lifting station for clean water with GXRM pump
  • 1 x 40 lt capacity tank
  • 1 x single-phase pump with 5 m cable and float switch
  • 1 x non-return valve with clapet on the pump delivery side
  • 1 x discharge pipe kit arranged for the connection of a Ø 40 mm PVC pipe
  • 1 x PVC adapting nipple for Ø 40 mm inlet
  • 1 x connector for Ø 25 mm flexible pipe

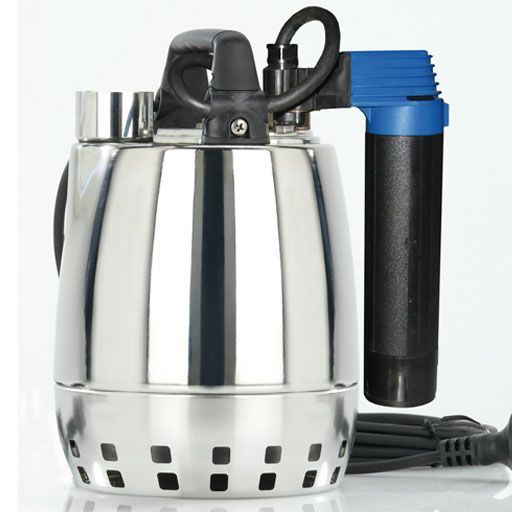

Pump Specification:


  • Stainless Steel construction
  • Integral float switch (tube)
  • 12m3/hr max. flow
  • 10.4m max. head
More Information
Weight 9.0 Kg
Dimensions 490mm High x 390mm Wide x 350mm Deep
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Material Plastic
Connection Type 1 1/4 Inch BSP Female
Voltage 240V 1Ph 50Hz
Max Flow 12m3/hr
Max Head 10.4m
Full Load Current (FLC) 2.5A
Cable Length 5 Metres
