Calpeda Easymat 3MXH205/A-E-EMT-24 Triple Pump Set 240v

SKU
U83003600000
MRRP £6,745.00 + VAT Our price £4,385.00 (+ VAT) Incl. VAT: £5,262.00
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

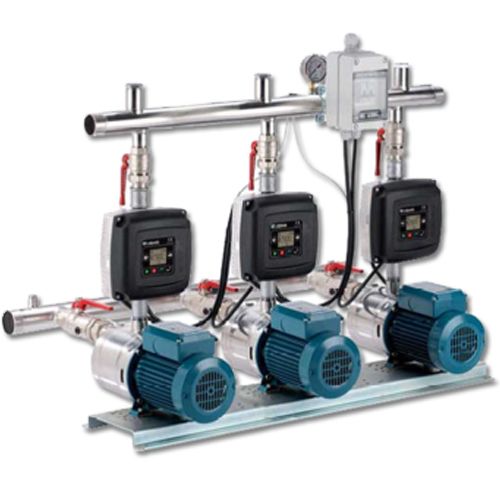

Calpeda Easymat 3MXH205/A-E-EMT-24 Triple Pump Set 240v - U83003600000

The Calpeda 3 MXH is a range of commercial variable speed three pump booster sets featuring MXH all stainless steel pumps. Suitable for Duty/Stand-by/Stand-by, Duty/Assist/Stand-by or Duty/Assist/Assist Operation.

Easymat Controller

This EASYMAT (Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda for Booster Sets. This particular system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, also included is independent cooling of the motor fan.

The Easymat controller for Booster Sets is only suitable to be used with 240V single phase supply. The pumps are available to be operated with the following models (max.2.2kW or 9.2A).

  • 3 MXH

The Booster Sets are controlled via a transducer and features a practical and easy to use LCD display and includes a wide range of display operating functions and signals.

Pumps

MXH horizontal, multi-stage, all stainless steel pumps.

Motors

  • 2-pole induction motors
  • Three phase 230/400V
  • Single phase 230V
  • Class F insulation
  • IP54 enclosure
  • IEC 34

System

One piece stainless steel manifolds, Brass valves and fittings, Mild steel base plate, 24 litre stainless steel vessels with butyl membrane (optional steel free standing vessel with stainless flange and butyl membrane). Fully wired with steel amour cable and fully tested

More Information
SKU U83003600000
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 130.0 Kg
Voltage 240V 1Ph 50Hz
Material Stainless Steel
