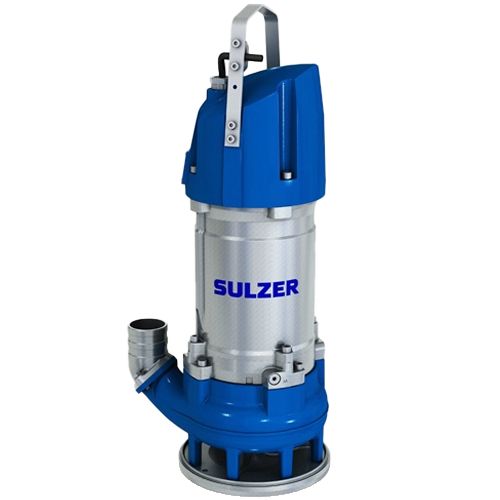

ABS XJS 110 170 Submersible Sludge Pump 415v

SKU
J85G56231111111
MRRP £5,292.00 + VAT Our price £3,176.00 (+ VAT) Incl. VAT: £3,811.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

ABS XJS 110 170 Submersible Sludge Pump 415v - J85G56231111111

The XJS 110 submersible sludge pump is ideal for pumping sludge and water mixed with solids. Direct on line start with built in contactor. Pumps to be used with VFD or 1000v must have terminal block instead of contactor. Thermal switches (140°C, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature.

Features:

  • Plug-and-pump installation without having to worry about overheating
  • Clog-free pumping with pumps designed for pumping sludge and water mixed with solids
  • Non-overloading performance with a smaller impeller diameter for duty with low water level or intermittent dry running
  • Maximum submergence - 20 metres
  • Max number of starts - 30 per hour
  • Max temperature of pumped medium at max power input and continuous duty 40 ºC
  • Max medium density 1100 kg/m3

Shaft Seal:

Double mechanical seal in oil bath

Primary seal: Silicon carbide on silicon carbide

Secondary seal: Silicon carbide on carbon

Bearings:

Upper bearing: Single-row deep groove ball bearing

Lower bearing: Double angular contact ball bearing

Discharge connections:

2 ½", 3" (standard), 4" hose connections

2 ½", 3", 4" G/B.S.P. threaded connections

**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**

More Information
SKU J85G56231111111
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 80.0 Kg
Dimensions 849mm (h) x 393mm (d)
Motor Size (kW/W) P2 = 11.8kW
Full Load Current (FLC) 21.5A
Voltage 415V 3Ph 50Hz
RPM 2920rpm
Cable Length 20 metres
Max Flow 110m3/hr
Max Head 30m
Max Temperature Max temperature of pumped medium at max power input and continuous duty 40 ºC
Material Aluminium
Impeller Material Nodular Cast Iron
