ABS XJC 110 High Head Submersible Drainage Center-line Pump 415v

SKU
J73456231111111
MRRP £9,600.00 + VAT Our price £5,761.00 (+ VAT) Incl. VAT: £6,913.20
Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

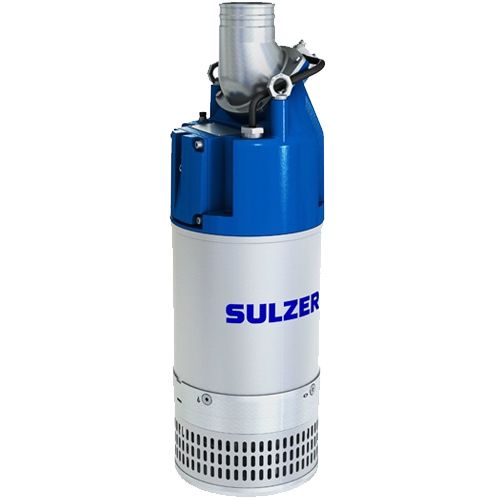

ABS XJC 110 High Head Submersible Drainage Center-line Pump 415v - J73456231111111

The slim design of the XJC 110 submersible drainage center-line pump makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives.

Features:

  • Plug- and-pump installation without having to worry about overheating
  • Reliable, trouble-free operation also at low water levels
  • Modular design increases serviceability and makes it easy to convert the pump for different hydraulic requirements
  • Maximum submergence: 20 metres
  • Max temperature of pumped medium at max power input and continuous duty 40 ºC
  • Strainer hole: 7.5 x 22mm
  • Max number of starts - 30 per hour
  • Direct on line start with built in contactor. Pumps to be used with VFD or 1000 V must have terminal block instead of contactor. Thermal switches (140 °C, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature
  • Shaft seal - Double mechanical seal in oil bath. Primary seal: Silicon carbide on silicon carbide. Secondary seal: Silicon carbide on carbon
  • Bearings - Upper bearing: Single-row deep groove ball bearing. Lower bearing: Double angular contact ball bearing

Discharge connections:

    • 3" (standard HD), 4" (standard ND), 6" (standard LD) hose connections
    • 3", 4", 6" G/B.S.P. threaded connections

**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**

More Information
SKU J73456231111111
Manufacturer ABS
Manufacturers Warranty 1 Year
Weight 81.0 Kg

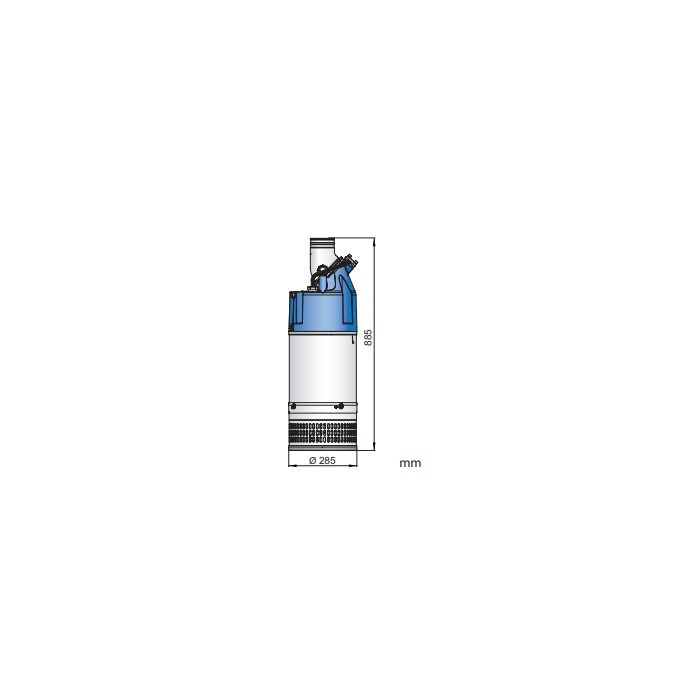

Dimensions 885mm (h) x 285mm (d)
Motor Size (kW/W) P2 = 11.8kW
Full Load Current (FLC) 21.5A
Voltage 415V 3Ph 50Hz
RPM 2920rpm
Cable Length 20 metres
Max Flow 115m3/hr
Max Head 51m
Max Temperature Max temperature of pumped medium at max power input and continuous duty 40 ºC
Material Aluminium
Impeller Material White Cast Iron
